Exploded Views and Parts Lists: W4 Rotary Control Head Exploded View 11-3
6881096C73-O June 11, 2003
11.2 W4 Rotary Control Head Exploded View

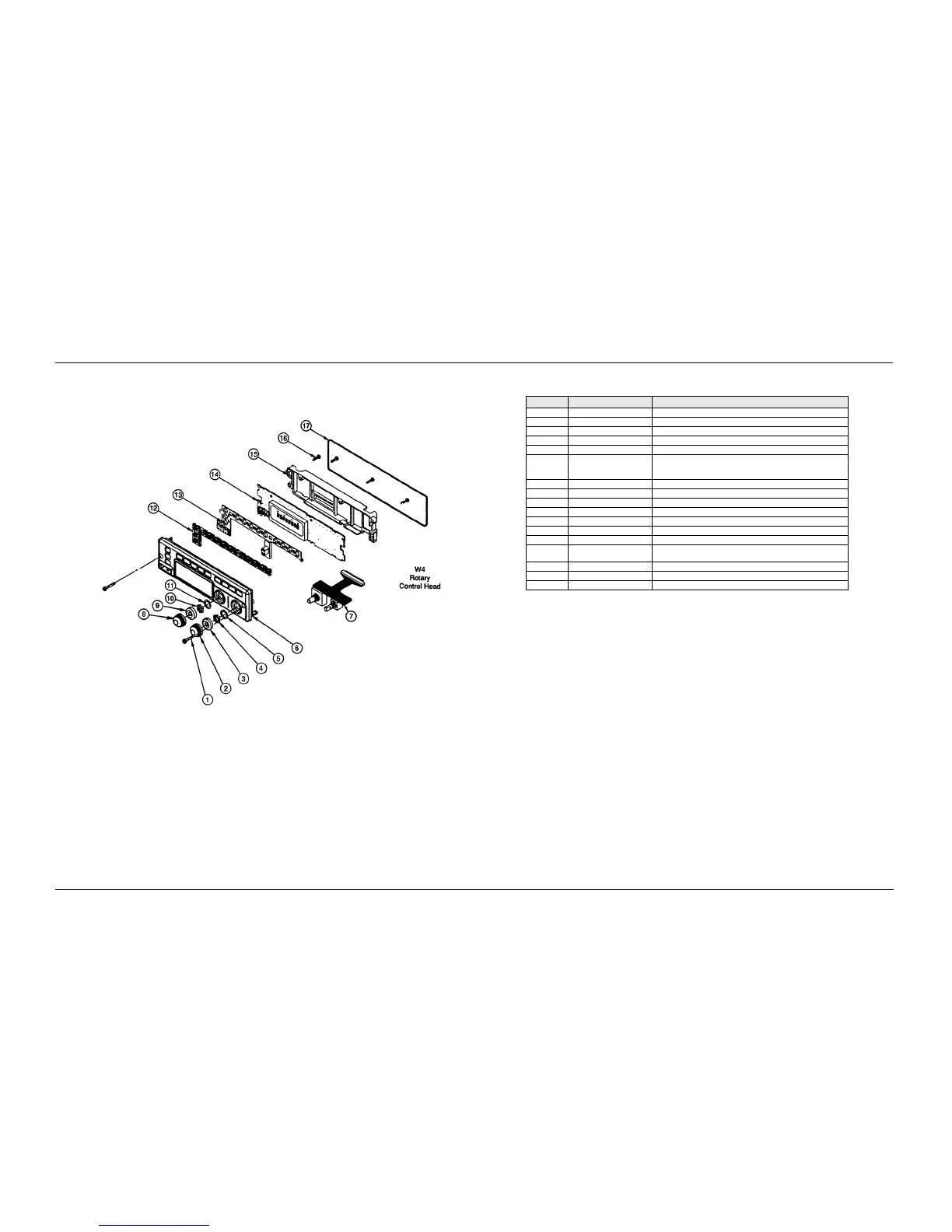

Figure 11-2. W4 Rotary Control Head Exploded View
Table 11-3. W4 Rotary Control Head Parts List
Item No. Motorola Part No. Description
1 0380077M07 SCREW, Control Head Mounting (Qty 2)
2 3602113Z05 KNOB, Volume Control
3 3205805V01 GASKET, W4 Shaft (Qty 2)
4 0284218M01 NUT, Volume Switch
5 0484219M01 LOCKWASHER, Volume Switch
6 1502117Z10 or
1502117Z11 or
1502117Z12
HOUSING, Front Cover (Mobile)
HOUSING, Front Cover (Motorcycle)
HOUSING, Front Cover (Rear)
7 0102709J83 ASSEMBLY, Volume and Rotary Switch
8 3602113Z03 KNOB, Mode Control
9 3205805V01 GASKET, W4 Shaft (Qty 2)
10 0284218M02 NUT, Mode Switch
11 0484219M02 LOCKWASHER, Mode Switch
12 6105129X01 LIGHTPIPE
13 7505128X01 KEYPAD
14 AAHN4045_ or
PMLN4019_
ASSEMBLY, Circuit Board (Mobile)
ASSEMBLY, Circuit Board (Motorcycle)
15 4302112Z02 SPACER, Internal
16 0310945A14 SCREW, Machine (Qty 4)
17 3280289L02 GASKET, Housing
Notes: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
The HKN4356_ Radio Cable is used to remote mount the W4 Control Head.
Universal Crypto Module (UCM) part numbers and descriptions are listed in the Encryption chapter of
this manual.
The dash-mount flex (3085020F01) is used to connect the W4 control head to the transceiver.
