11-2 Exploded Views and Parts Lists: W3 Hand-Held Control Head Exploded View
June 11, 2003 6881096C73-O

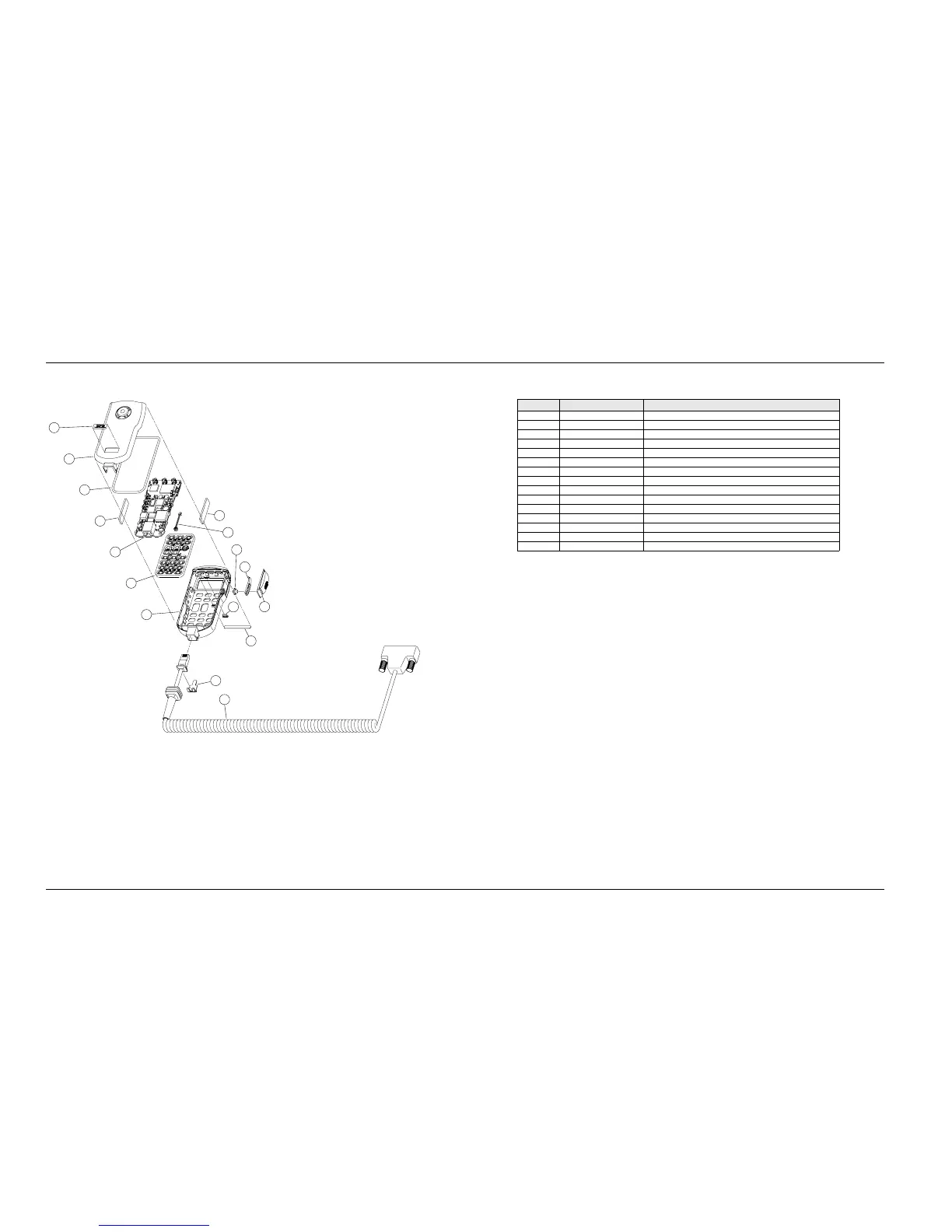

11.1 W3 Hand-Held Control Head Exploded View
Figure 11-1. W3 Hand-Held Control Head Exploded View
Table 11-2. W3 Hand-Held Control Head Exploded View Parts List
Item No. Motorola Part No. Description
1 Not available LABEL
2 0105955T26 ASSEMBLY, Rear Cover
3 3205082E93 SEAL, Main
4 4205343Y01 RETAINER, Snap (Qty 2)
5 0102707D81 BOARD, SB9600 Circuit
6 7505832X01 KEYPAD (Part of Item 7)
7 0102707D86 ASSEMBLY, Housing (Includes Items 6 and 9 thru 13)
8 0102708D08 ASSEMBLY, Microphone
9 7505618V02 ACTUATOR, PTT (Part of Item 7)
10 4505850X01 LEVER, PTT (Part of Item 7)
11 3205839X01 INDICATOR, Transmit (Part of Item 7)
12 3805835X01 BOOT, PTT (Part of Item 7)
13 3305409X17 LABEL (Part of Item 7)
14 3205274V01 WEDGE, Seal Support
15 HKN6095_ ASSEMBLY, Cable
Note: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
Universal Crypto Module (UCM) part numbers and descriptions are listed in the Encryption chapter of
this manual.
