Motorola Astro XTL 5000

June 11, 2003 6881096C73-O
11-12 Exploded Views and Parts Lists: Motorcycle Weather-Resistant Radio Enclosure
11.15 Motorcycle Weather-Resistant Radio Enclosure

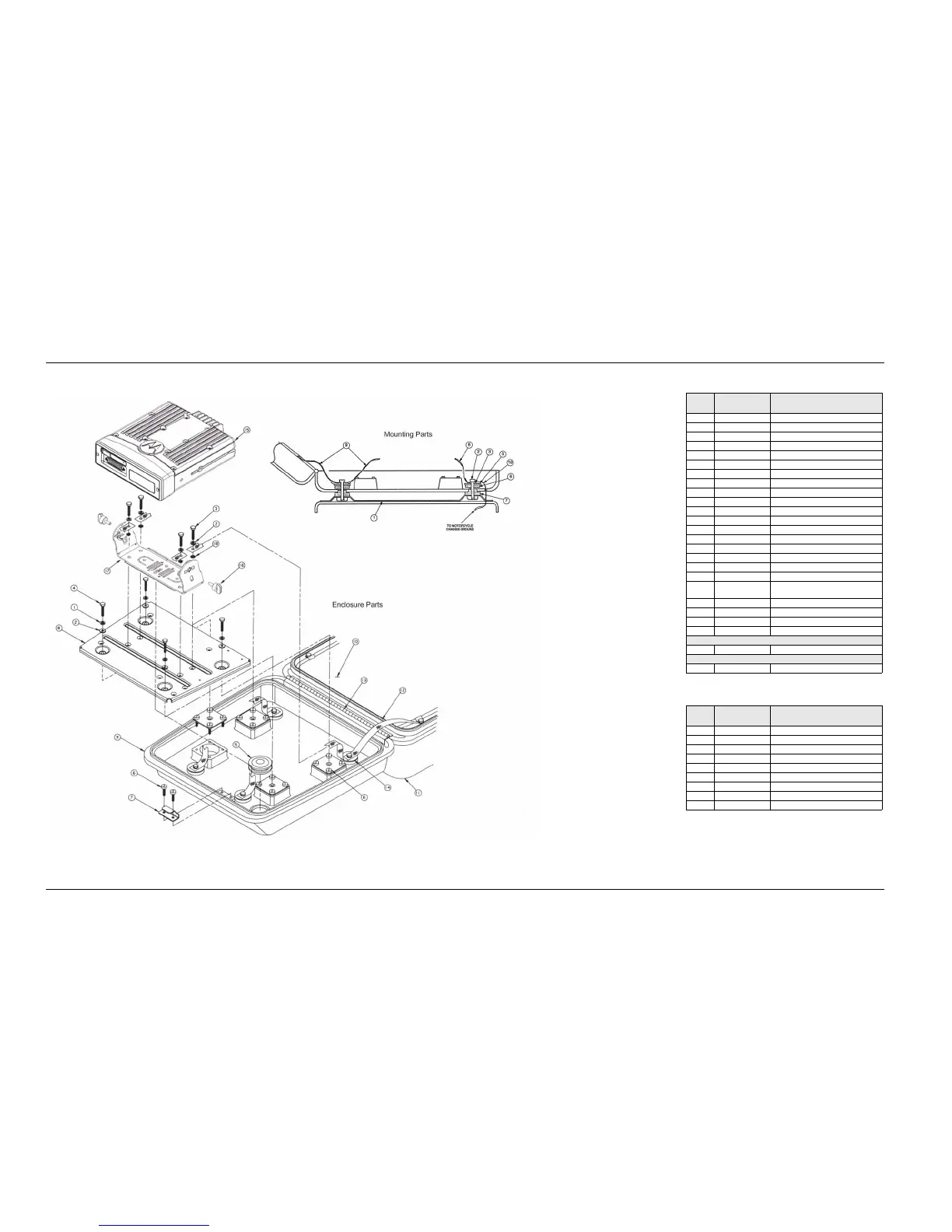

Figure 11-15. Motorcycle Weather-Resistant Radio Enclosure
Table 11-16. Motorcycle Weather-Resistant Radio Enclosure
Parts List (Enclosure Parts)
Item
No.
Motorola
Part No.
Description
1 04-84336M02 Lockwasher (4 used)
2 04-84338M01 Washer, flat (8 used)
3 03-84208M16 Screw (4 used)
4 03-84208M16 Screw (4 used)
5 05-00005M01 Grommet, large hole
6 03-00007467 Screw, 8-18 x 3/8 (18 used)
7 55-83818F01 Catch, lock
8 64-82734P02 Plate, mounting, radio
9 See Model Chart Housing, rework, bottom
– 64-00245M01 Adapter (4 used)
10 26-80066R01 Shield, groung plane
11 See Model Chart Housing, top cover
12 32-00042M01 Gasket
– 42-10128A05 Ring, retaining
– 45-83015P01 Cam, lock
– 55-83817F01 Lock
13 55-83079P01 Hinge
– 05-10344A09 Rivet (10 used)
14 — Enclosure mounting hardware
(see Table 11-13 below)
15 — Transceiver
16 03-84244C06 Screw, wing (2 used)
17 HLN6861_ Trunnion
18 04-00002647 Lockwasher, external tooth (6 used)
Non-Referenced Parts (from HLN6168B and HLN6169B)
03-80077M01 Screw, hex socket
Non-Referenced Parts (from HLN6180B)
42-10217A29 Tie strap, 140” x 11” (10 used)
Table 11-17. Motorcycle Weather-Resistant Radio Enclosure
Parts List (Mounting Parts)
Item
No.
Motorola
Part No.
Description
1 6483673F02 Universal mounting plate
2 0300034M03 Screw, machine M6 x 1 x 30 (4 used)
3 0400136658 Lockwasher (4 used)
5 0483416P01 Washer, flat (4 used)
6 7500025M02 Rubber washer, flat
7 7500025M01 Rubber washer, shoulder
8 3000046M01 Ground strap, 4-1/2” lg (2 used)
9 3000047M01 Ground strap, 7-1/2” lg (3 used)
10 3000047M03 Strap, ground (1 used)
