June 11, 2003 6881096C73-O
8-22 Disassembly/Reassembly Procedures: Replacement Procedures
4. Insert the RF/DC retention clips and fully seat them. The DC clip should be inserted first to
properly locate the main board.

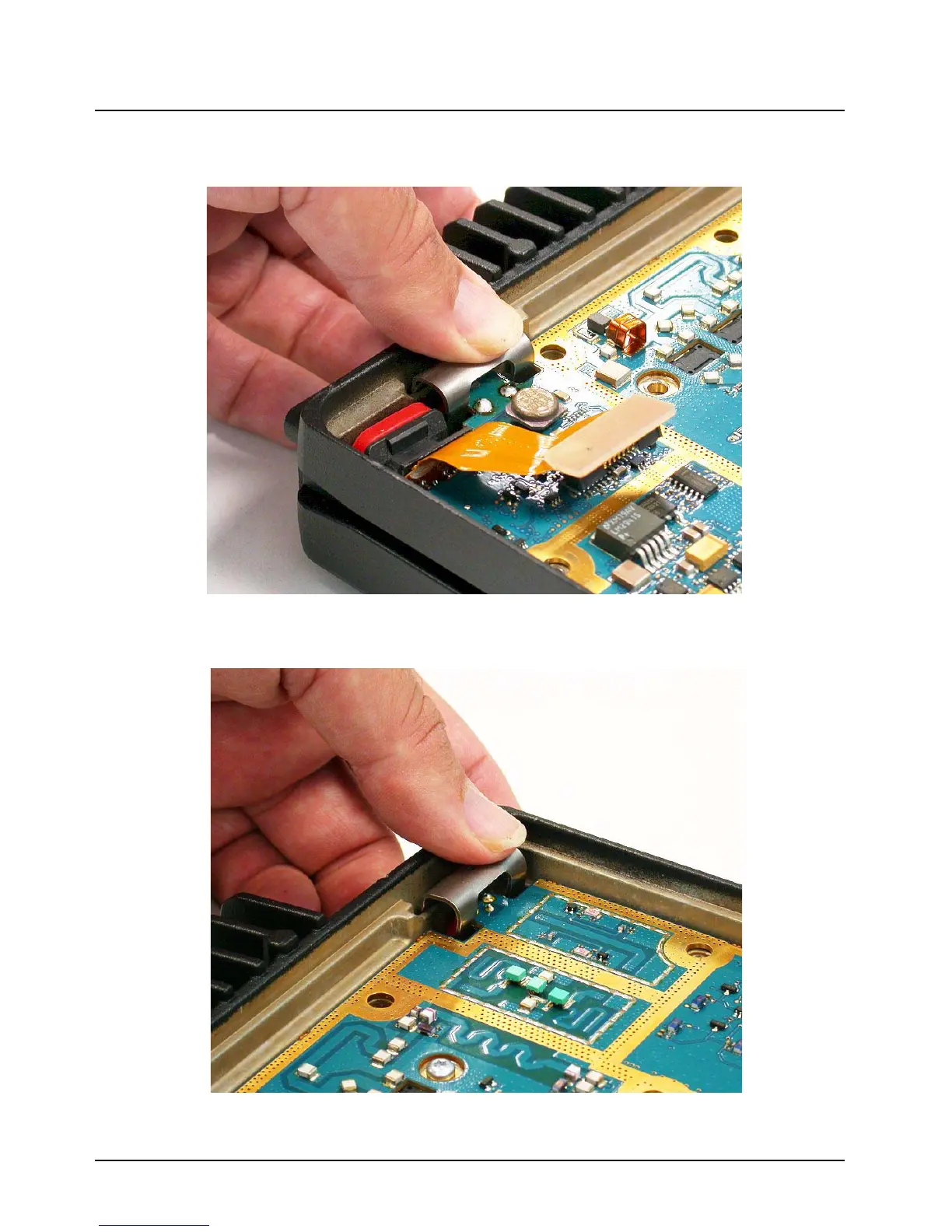

Figure 8-24. Inserting the RF/DC Retention Clip (DC Side)
Figure 8-25. Inserting the RF/DC Retention Clip (RF Side)
