Motorola Astro XTL 5000 Basic Service Manual

6881096C73-O June 11, 2003
Disassembly/Reassembly Procedures: Replacement Procedures 8-13

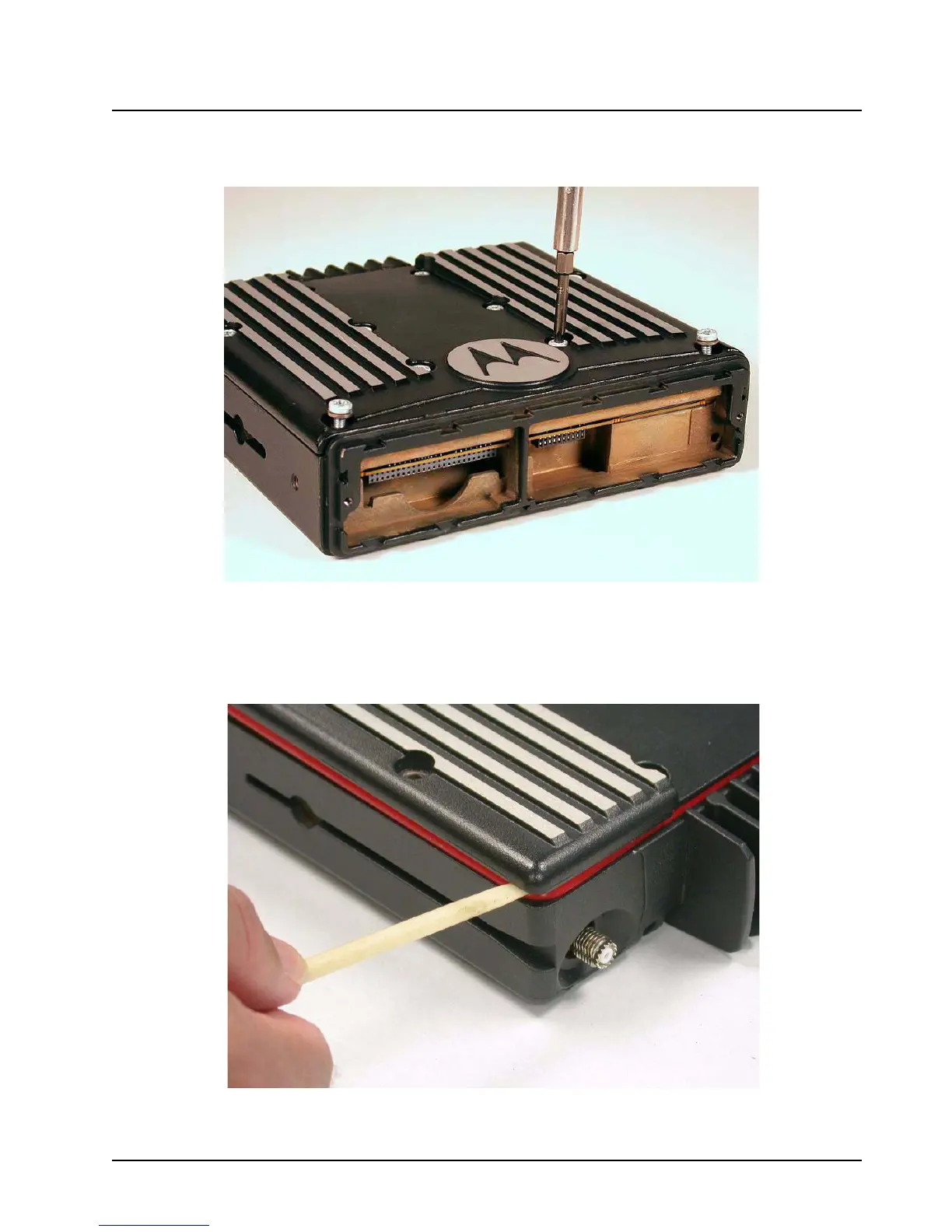

10. Remove the 10 top-cover screws using a T20 Torx bit. These screws have sealing washers
that should be kept with the screw.
Figure 8-11. Removing the Top Cover Screws
11. Remove the top cover by lifting up simultaneously on both side edges. It may be necessary to
gently pry the cover off using a plastic tool.
Figure 8-12. Lifting the Top Cover
