Motorola Astro XTL 5000 Basic Service Manual

6881096C73-O June 11, 2003
Disassembly/Reassembly Procedures: Replacement Procedures 8-19
8.2.6 Radio Reassembly
Use the procedure that follows to reassemble your radio.
1. Prior to reassembling the radio, inspect all seals and sealing surfaces for damage (nicks,
cuts, etc.) or dirt. Refer to the exploded view bill of materials for the correct part numbers, and
replace parts, as necessary. Reseat all seals on their respective parts.
Begin with the chassis. Thoroughly inspect the chassis shield gasketing for damage and
verify all chassis thermal pads are in place and free of damage. See “Chassis Thermal Pad
Replacement Procedure” on page 8-30 to replace damaged pads.

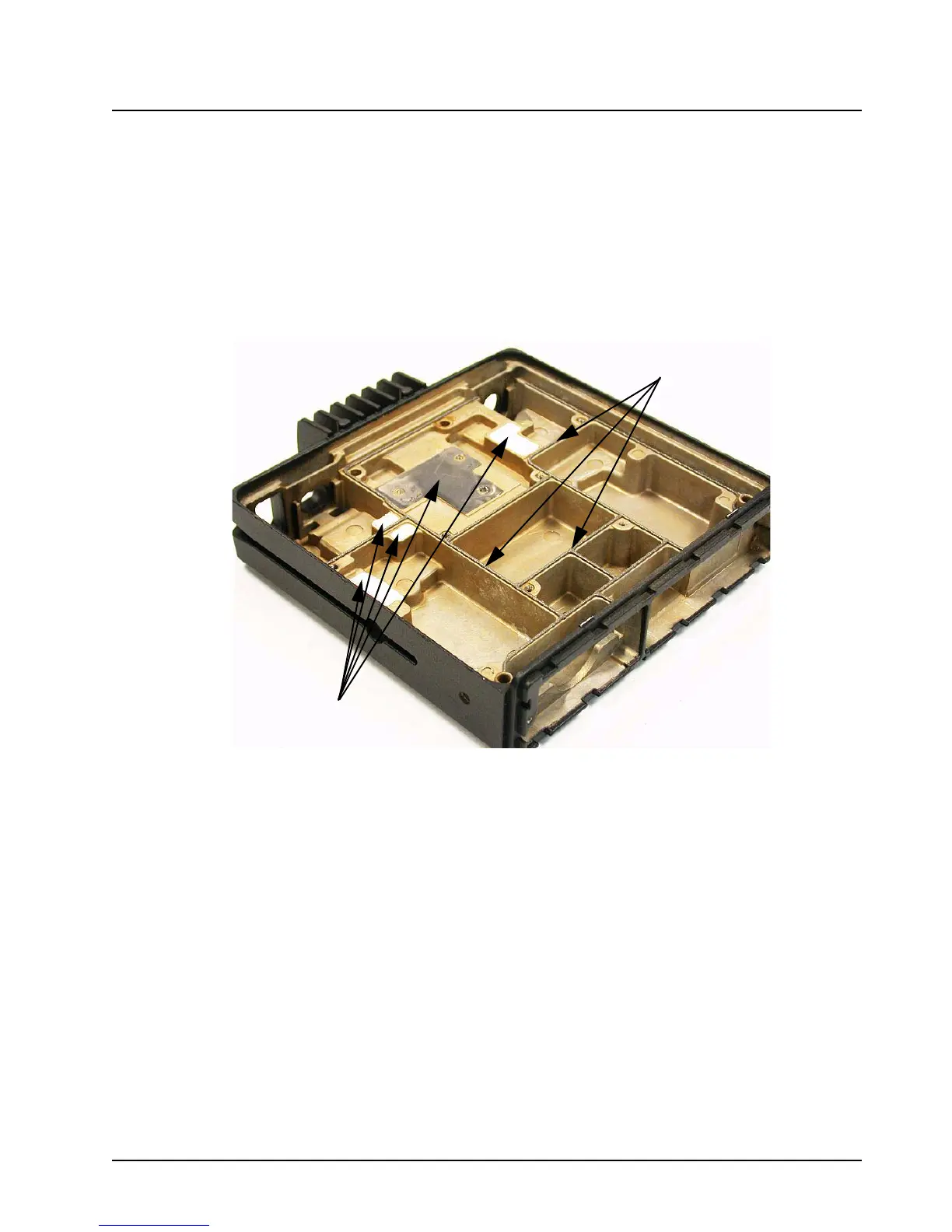

Figure 8-21. Inspecting the Chassis Shield Gasketing and Thermal Pads
Thermal
Pads
Chassis
Shield
Gasketing
