LCD Controller
18-18 MPC823e REFERENCE MANUAL MOTOROLA
LCD CONTROLLER
18

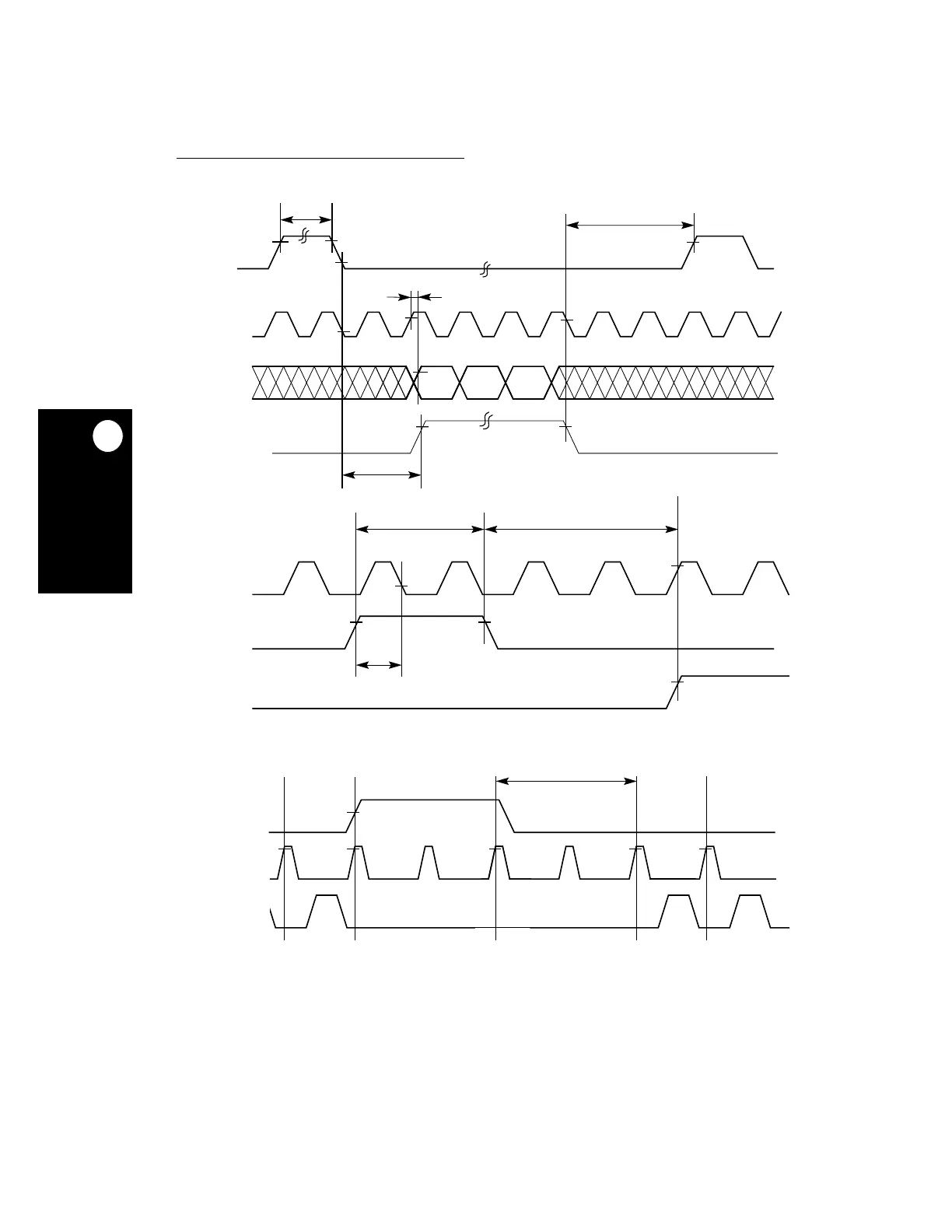

Figure 18-12. Active Interface Timing Diagram
SHIFT/CLK
LD
LCD_AC/LOE
FRAME/VSYNC
LOAD/HSYNC
LCD_AC/LOE
4 T
CYC
T
DELAY
4 T
CYC
4 T
CYC
1 – 16 LINES (VPW)
5 T
CYC
0 – 1,023 LINES (WBF)
LOAD/HSYNC
FIRST LINE
NTH LINE
LOAD/HSYNC
FRAME/VSYNC
WBF (LINES)
LCD_AC/LOE
