Motorola MPC823e User Manual

Video Controller
MOTOROLA MPC823e REFERENCE MANUAL 19-21
VIDEO CONTROLLER
19

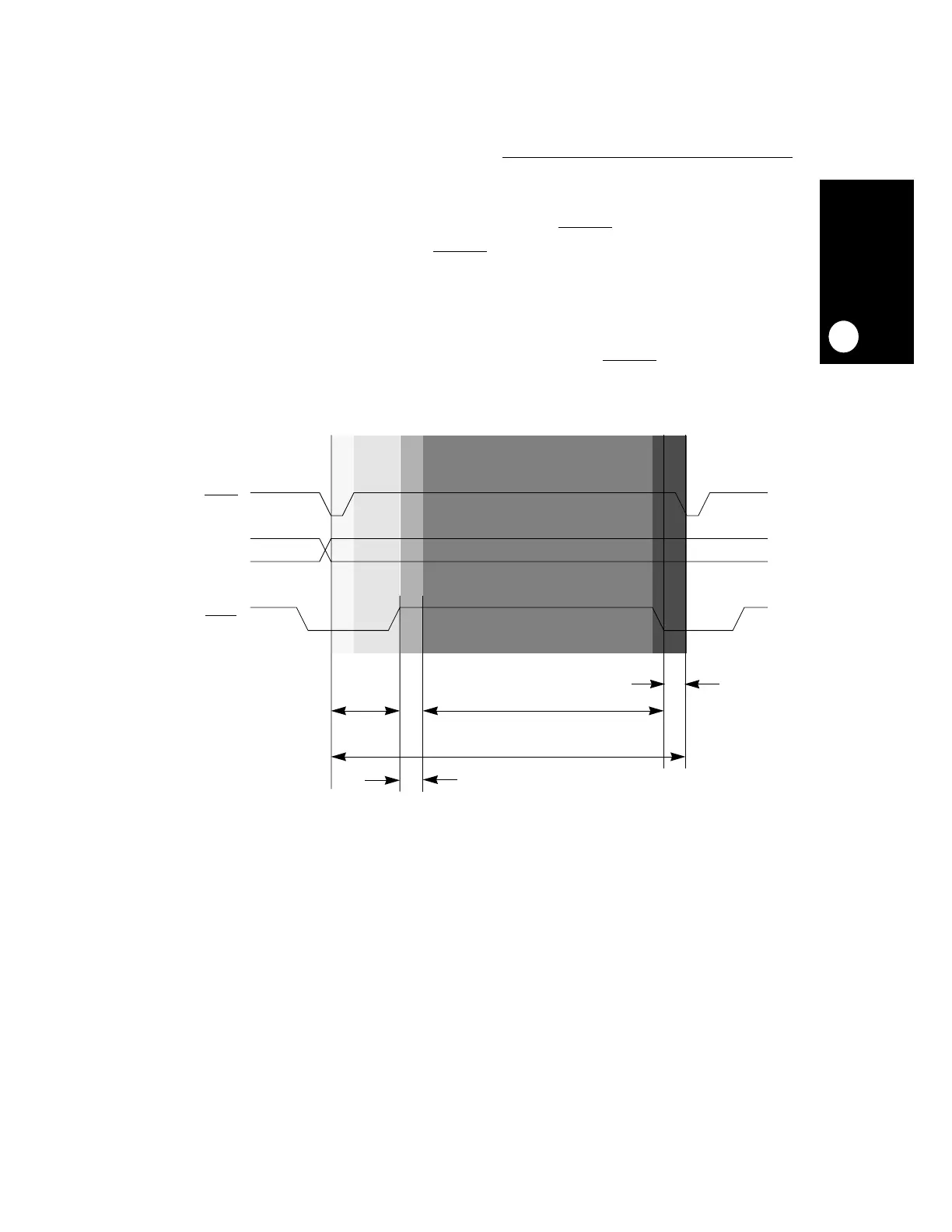

Figure 19-6 illustrates the horizontal timing of a single horizontal line, which is represented
by five RAM entries:
• A—The section of the line where both blanking and HSYNC
are asserted.
• B—The section of the line where HSYNC
is negated and blanking is asserted.
• C—The section of the line where both signals are negated while the driven data is
background
• D—The section of the line where both signals are negated while the driven data is the
image data.
• E—The section of the line where blanking is asserted and HSYNC
is negated.
Figure 19-6. NTSC Horizontal Timing
118 PIXELS
(236 CLOCKS)
720 PIXELS
(1440 CLOCKS)
858 PIXELS
(1716 CLOCKS)
LINE 3
LINE 4
HSYNC
FIELD
BLANK
4 PIXELS
(8 CLOCKS)
16 PIXELS
(32 CLOCKS)
AB D E
C
