E Series Automated Dispensing System
103www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
Appendix A, Type Menu Reference (continued)
16 Call Pattern
Call Pattern 1/2
------------------------------
X: 130.93 mm
Y: 37.39 mm
Z: 45.54 mm
[F1] OK [F2] Next [F3] Current
Call Pattern 2/2
------------------------------
Label: 1
[F1] OK [F2] Next
Key Press Function
>
Causes the system to dispense in a pattern that is like another pattern in the program, but at the
location in the program where the Call Pattern command occurs. The called pattern must have a
Label assigned to it. The system stops dispensing the called pattern when it reaches an End Pattern
command.
Example of a program with a Call Pattern command:
0001 Call Pattern Label 1
0002 Call Pattern Label 1
0003 End Program
0004 EMPTY
0005 Label 1
0006 Line Start 10.0,1
0007 Line End
0008 Line Start 10.0,1
0009 Line End
0010 Dispense Dot 0.100
0011 Dispense Dot 0.100
0012 Dispense Dot 0.100
0013 Dispense Dot 0.100
0014 Dispense Dot 0.100
0015 End Pattern

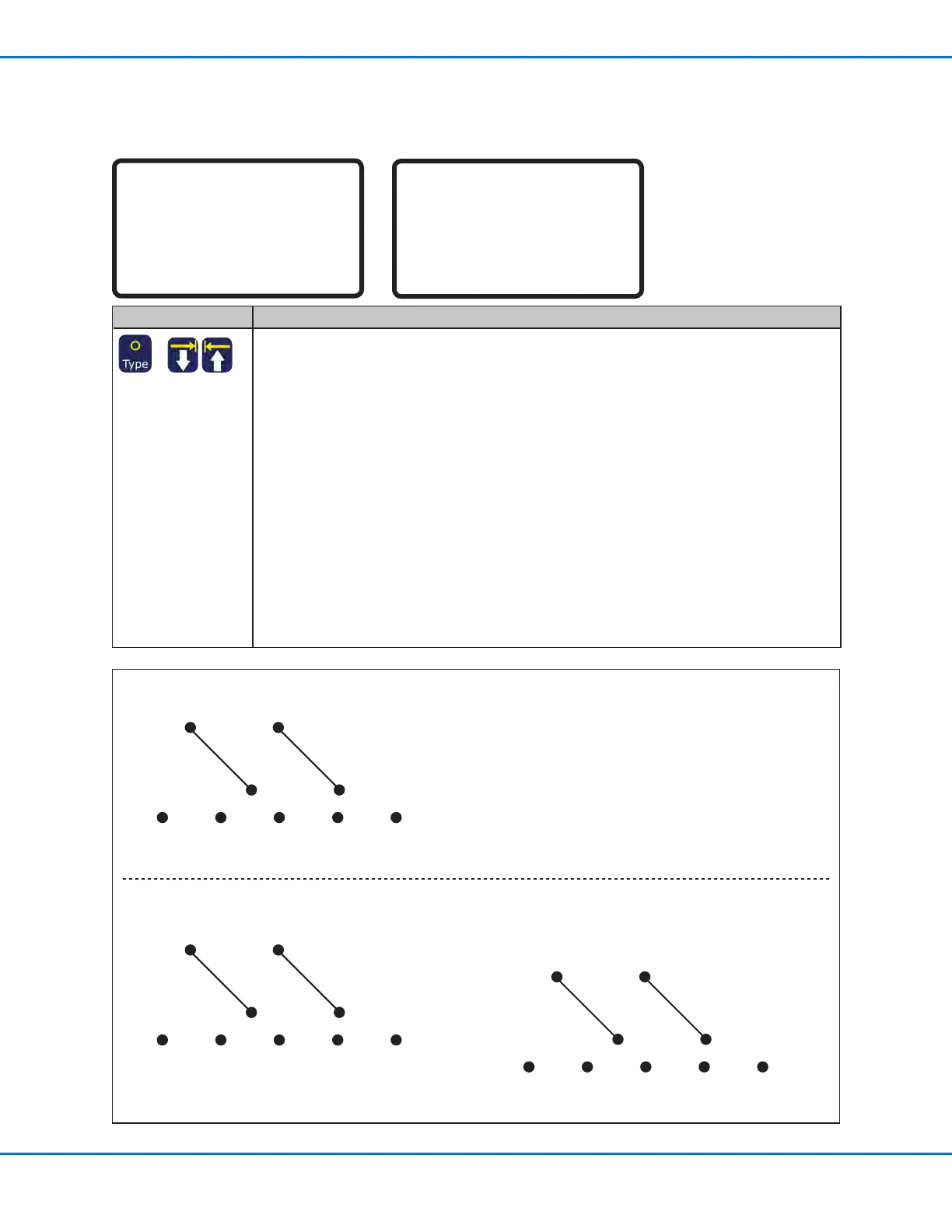

Example Illustration of the Call Pattern command
Line Start Line Start
Line End Line end
Dispense
Dot
Dispense
Dot
Dispense
Dot
Dispense
Dot
Dispense
Dot
The dispense points that are dened under a Label command in a dispense program.
Programmed Pattern
Call Pattern 1
The pattern is executed at the specied locations using the Call Pattern command.
Call Pattern 2
Line Start Line Start
Line End Line end
Dispense
Dot
Dispense
Dot
Dispense
Dot
Dispense
Dot
Dispense
Dot
Line Start Line Start
Line End Line end
Dispense
Dot
Dispense
Dot
Dispense
Dot
Dispense
Dot
Dispense
Dot
