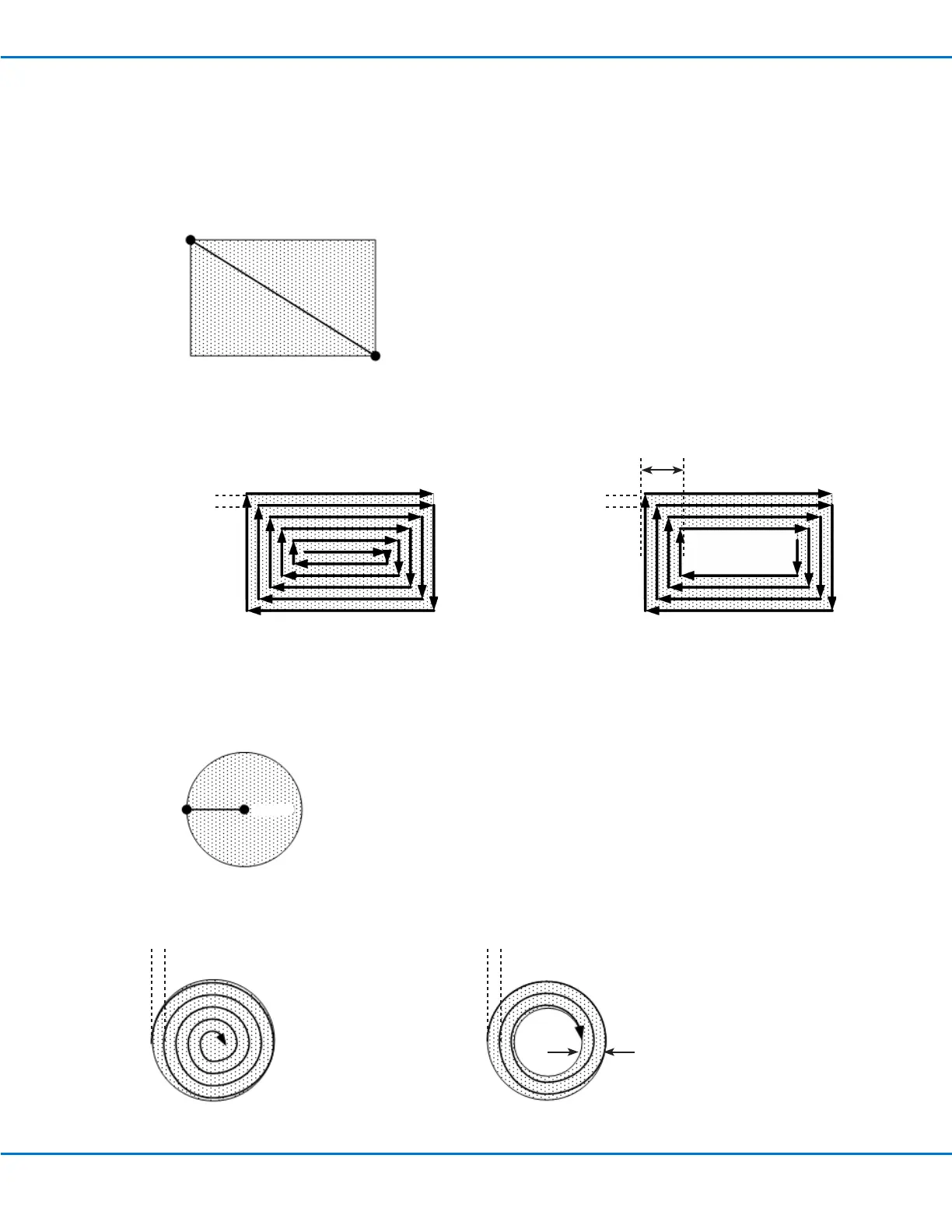

Fill Area Type 4. Circle In
This command lls the dened area by moving the tip along a spiral path from the outside of the circle to the center. After entering
a Fill Area Circle In command, jog the tip to a point on the outside limit of the circle to be lled and enter that location as a Line
Start point. Then jog the tip directly across to the center of the circle and enter that location as a Line End point.
Line Start
Line End
Fill Area
EXAMPLES:
Width = 5 mm
Band = 15 mm
Width = 5 mm
Circle In when Width = 5 and Band = 0 Circle In when Width = 5 and Band = 15
Appendix A, Type Menu Reference (continued)
Fill Area Type 3. Rectangle Out
This command lls a rectangular area by moving the tip along a square, spiral-shaped path from the center of the rectangle to the
outside. After entering a Fill Area Rectangle Out command, enter Line Start point at the top left corner of the area to be lled and a
Line End point at the bottom right corner of that area.
NOTE: Use Polygon In or Polygon Out for a rotated square shape.
Line Start
Line End
Fill Area
Rectangle Out when Width = 5 mm
EXAMPLES:
Width = 5 mm
Width = 5 mm
Band = 15 mm
Rectangle Out when Width = 5 and Band = 0 Rectangle Out when Width = 5 and Band = 15
