23 Acceleration
Acceleration
------------------------------
Value: 50 mm/s2
[F1] OK
Key Press Function
>
Controls the acceleration of the robot axes from point to point along a continuous path. This command
is useful for creating sharp corners in a line dispense pattern.
Default (recommended): 50 (mm/s
2
)
Range: 20–500 (mm/s
2
)
Appendix A, Type Menu Reference (continued)

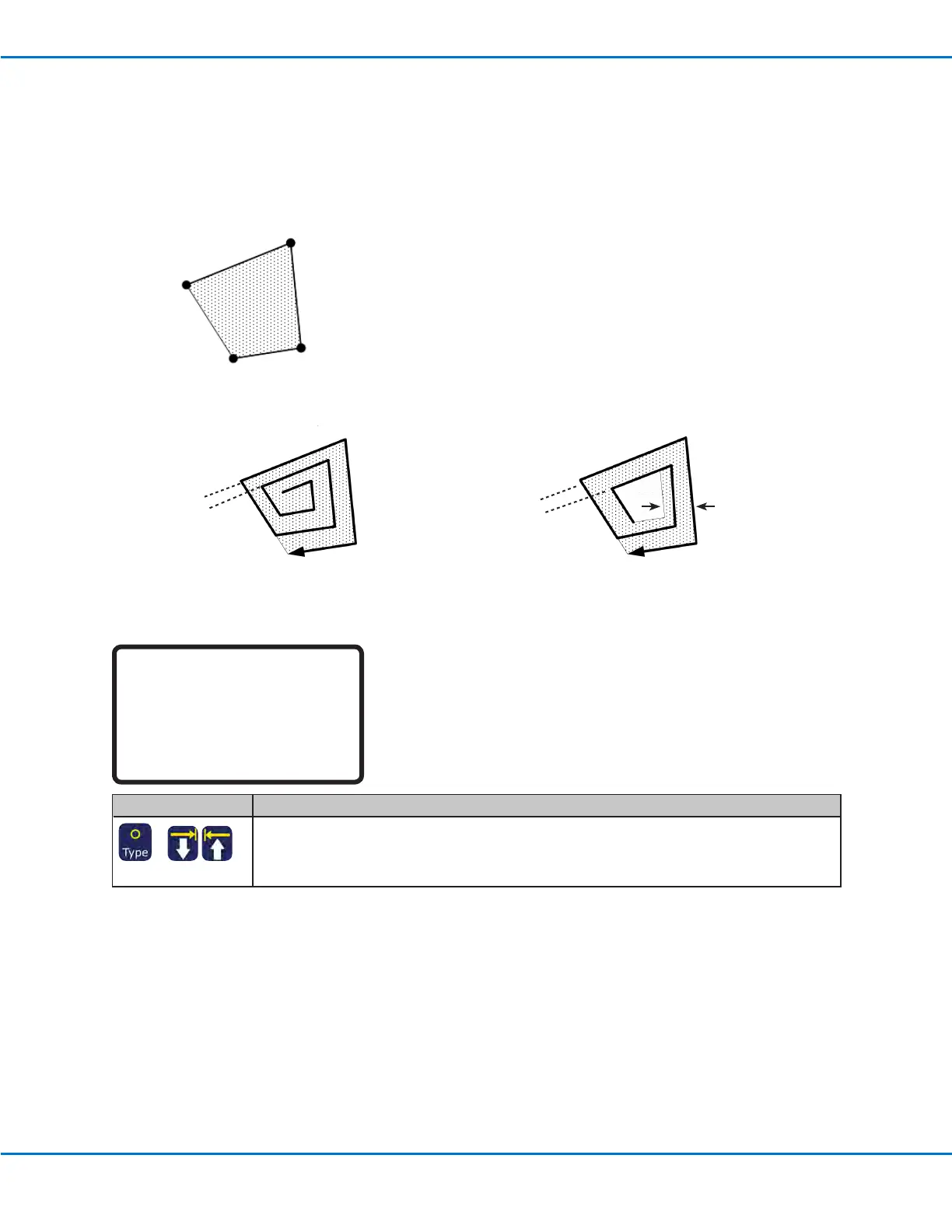

Fill Area Type 7. Polygon Out (Inner to Outer)
This command lls the dened area by moving the tip along a spiral-shaped path from the inside of the polygon shape to the outer
edge. After entering a Polygon Out command, enter a Line Start point at the rst corner of the area to be lled, a Line Passing
point for each corner after Line Start, and a Line End point for the last corner of the area.
NOTE: Use Polygon In or Polygon Out for a rotated square shape.
Line Start
Line End
Fill Area
Line Passing
Line Passing
EXAMPLES:
Width = 5 mm
Band = 15 mm
Width = 5 mm
Polygon Out when Width = 5 and Band = 0 Polygon Out when Width = 5 and Band = 15
