© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
Catheter Rack 10-7
Service Procedures

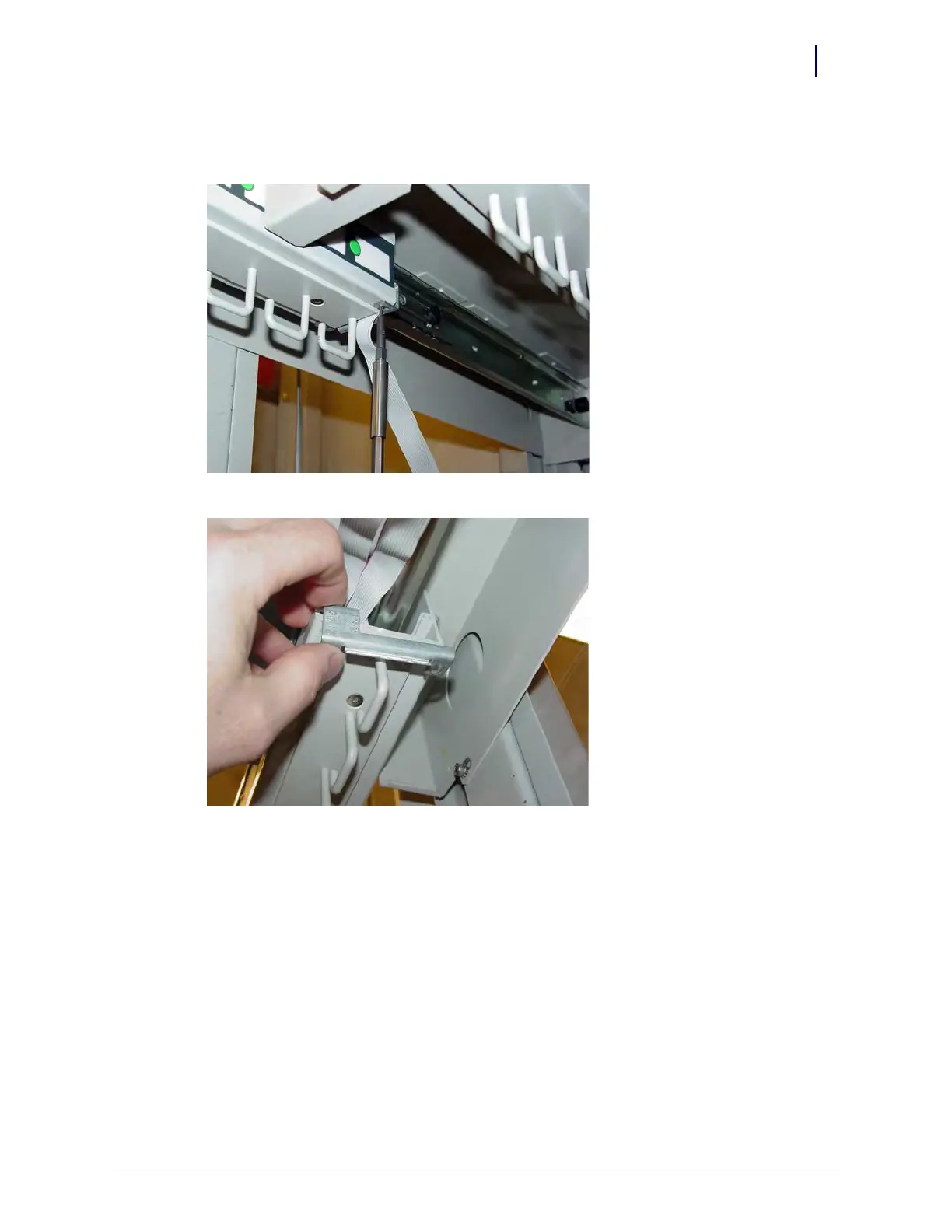

4. Remove the two screws securing the plate on the back of the cath rack arm using a Torx T8
screwdriver.
5. Remove the plate.
6. Slide the switchpanel toward the back of the cabinet.
7. Disconnect the switchpanel cable from the switchpanel.
To Next Page
