2-16 Frames and Wireways
Wireway Removal
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
Wireway
1. Remove the four screws - two screws on the top of the wireway and the two screws
asymmetrically placed near the center of the wireway using a T15 Torx screwdriver.

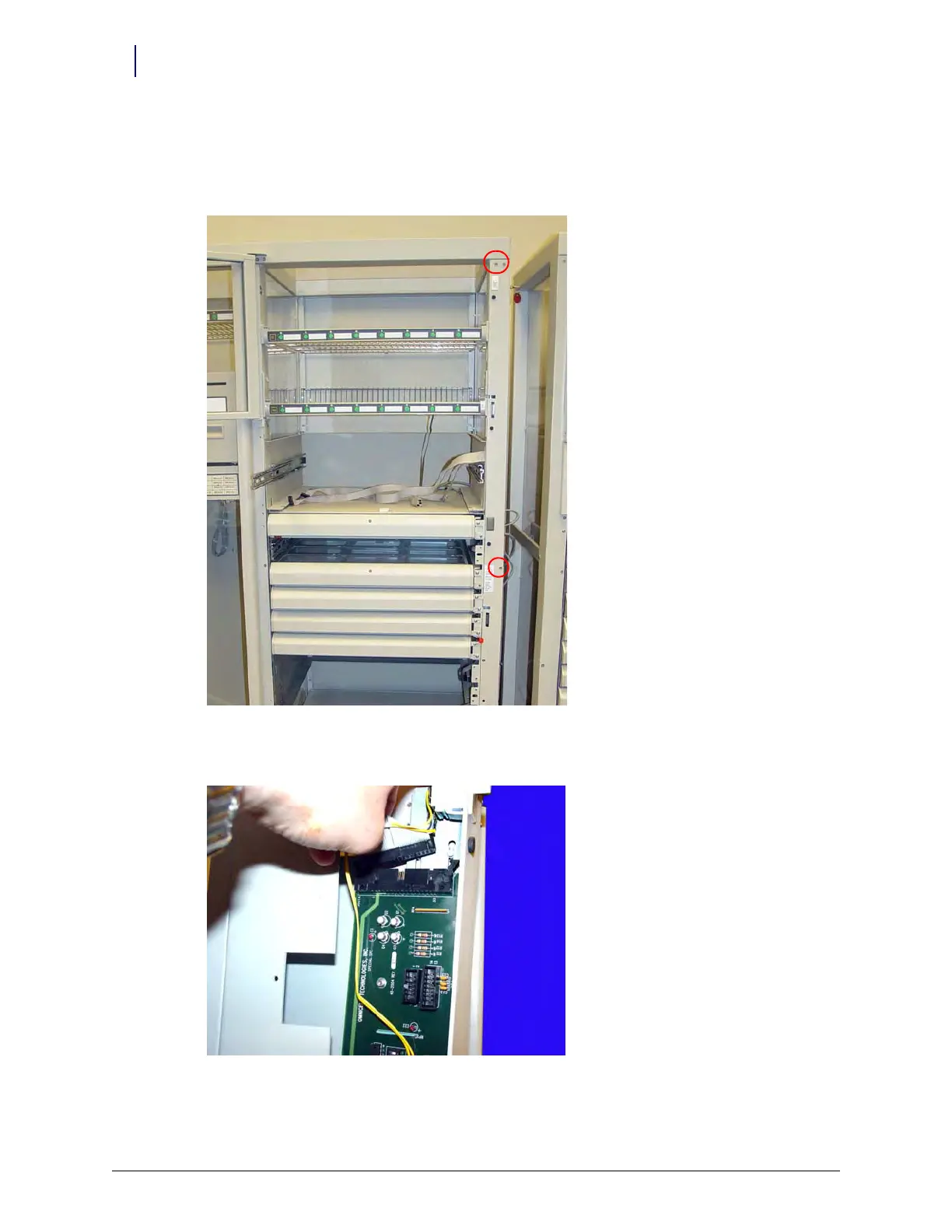

Figure 2-28. Remove the Screws Securing the Wireway
2. Pull the wireway slightly forward and disconnect the overhead communications cable.
Figure 2-29. Disconnect the Overhead Communications Cable
3. Remove the wireway.
