Locks and Latches
Introduction
Locks used in 1-,2, and 3-cell cabinets are cam locks. The locks may be used to secure pharmacy
drawers, cabinet doors or CT PC Box lids. The cam locks are mounted with pawl latches and are

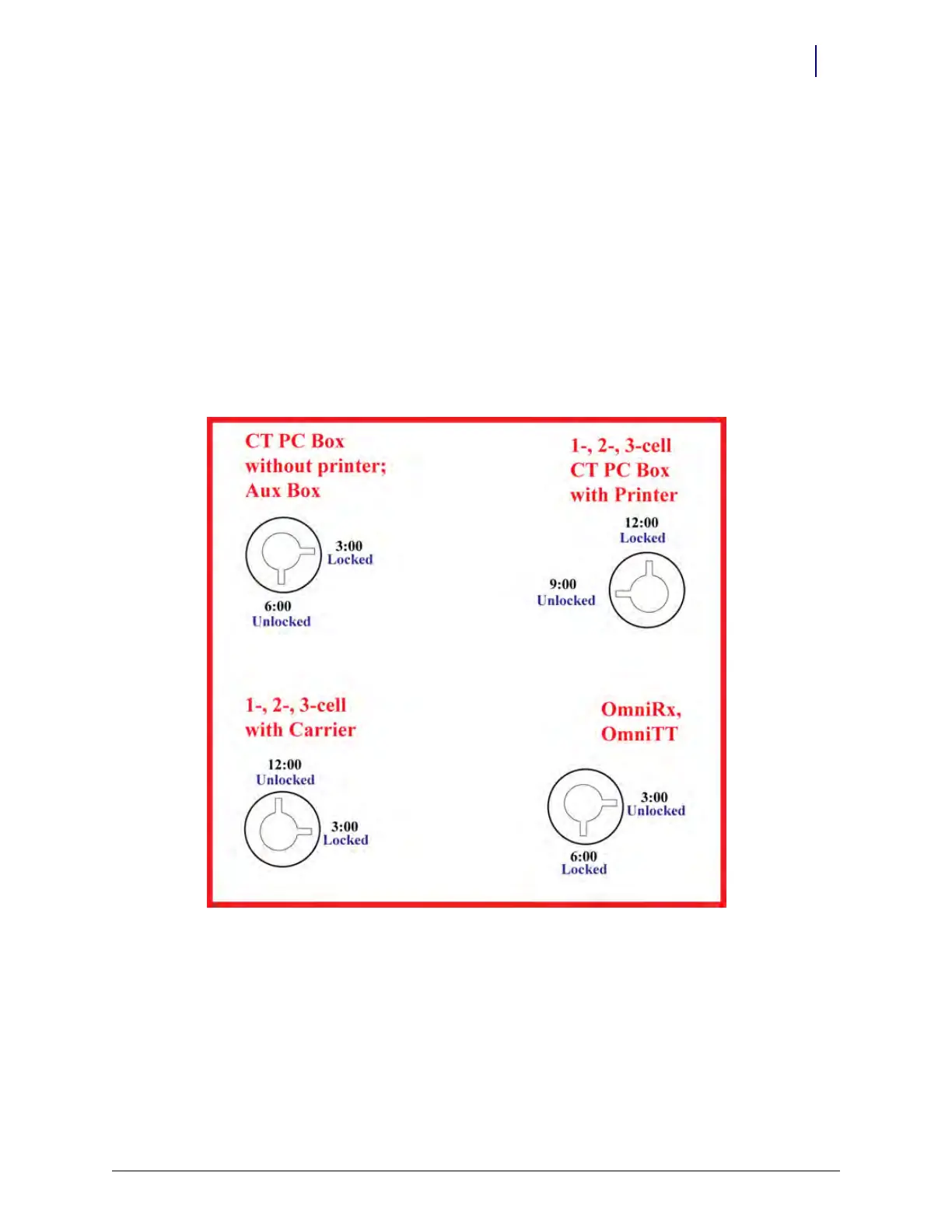

designed to be oriented only one way. The following diagram shows the proper orientation of
locks on a 1-, 2-, or 3-cell cabinet.
This chapter provides the removal procedure. Installation can be done by performing the removal
procedure in reverse order.
Tools list
The following tools are required to install the CT PC Box:
Tor x T8 driver
Torx T10 driver
Torx T15 driver
9/64” Allen wrench
Cam lock key #2036
