Switchpanels 4-7
Removal Procedure
8. Disconnect the switchpanel cable from the switchpanel.
Figure 4-11. Disconnect the Switchpanel Cable
9. Remove the switchpanel by sliding it out of the housing.
10. Disconnect the LED cable from the switchpanel by pressing the tab on the connector.
From a Catheter Rack
1. Pull the cath rack rail forward until it is fully extended.

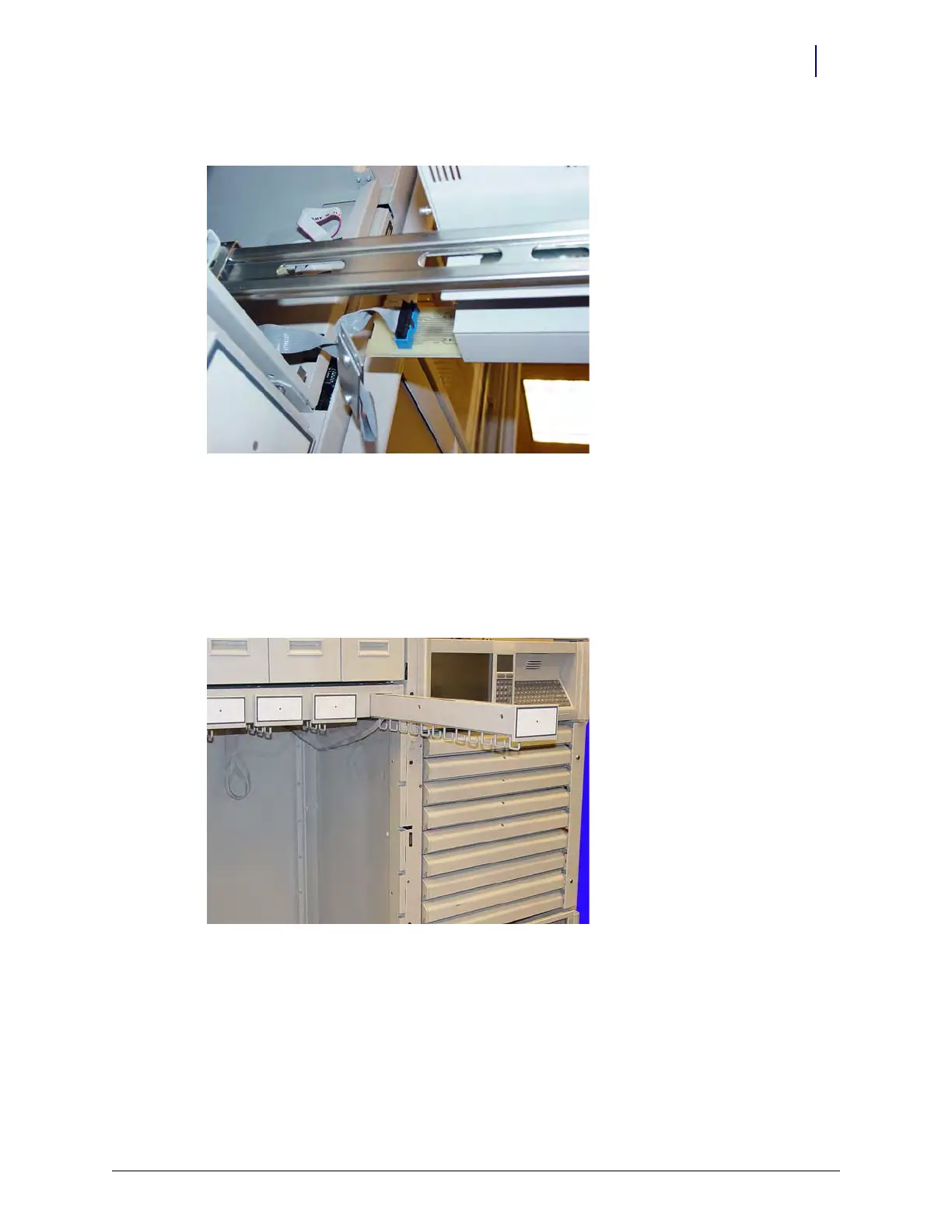

Figure 4-12. Extend the cath rack rail until it locks into place
