© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
E-Box Service Guide 14-17
Remove/Replace the Power Supply
5. Connect the power supply power cable to the PowerCom4 board.

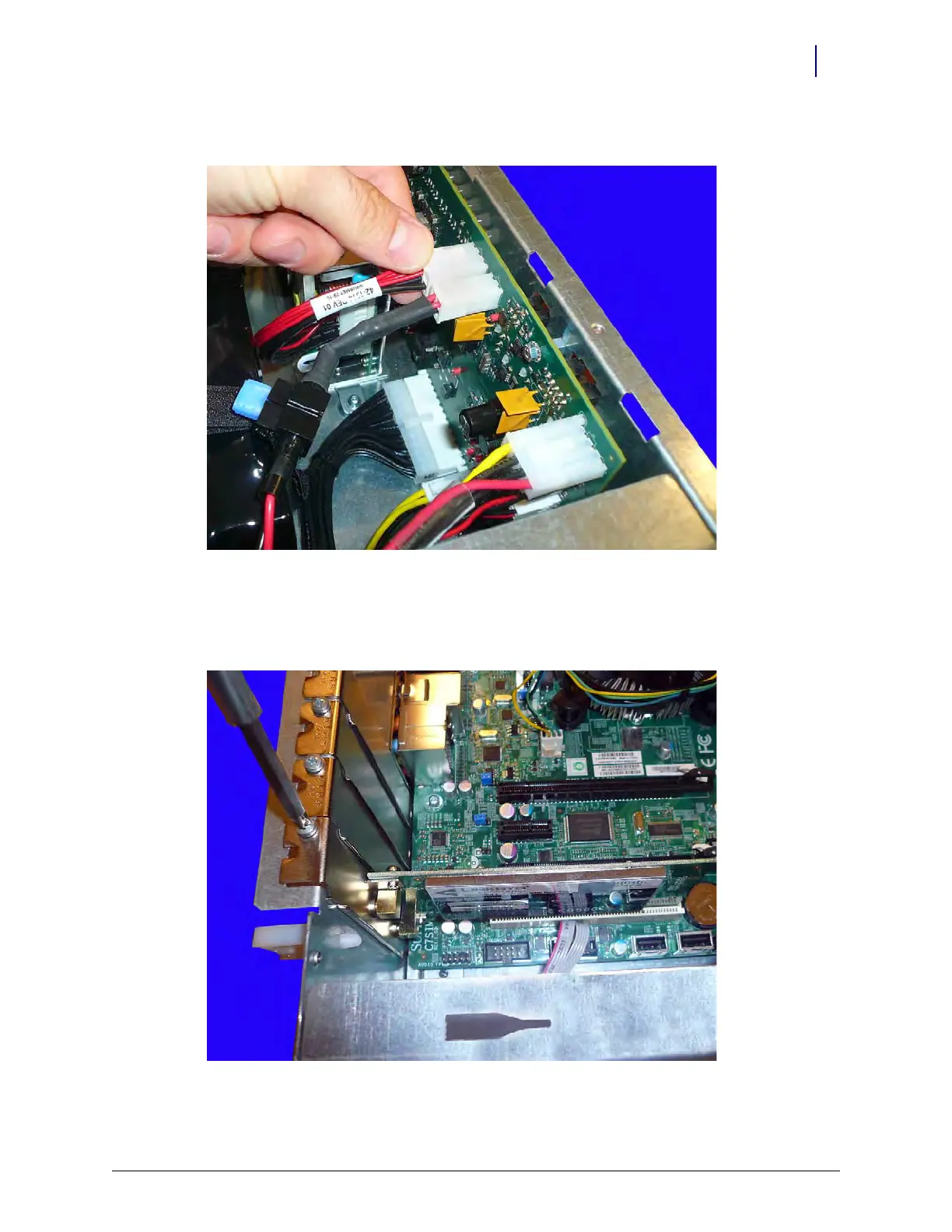

Figure 14-25. Connect the power supply power cable to the PowerCom4 board
Remove the wireless
c
a
rd
1. Remove the screw that secures the wireless card to the E-Box frame.
Figure 14-26. Remove the screw securing the wireless card to the E-Box
