4-2 Switchpanels
Removal Procedure
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
Removal Procedure
From a Shelf
1. Lift the shelf clips on either side of the switchpanel and open the clips.
o

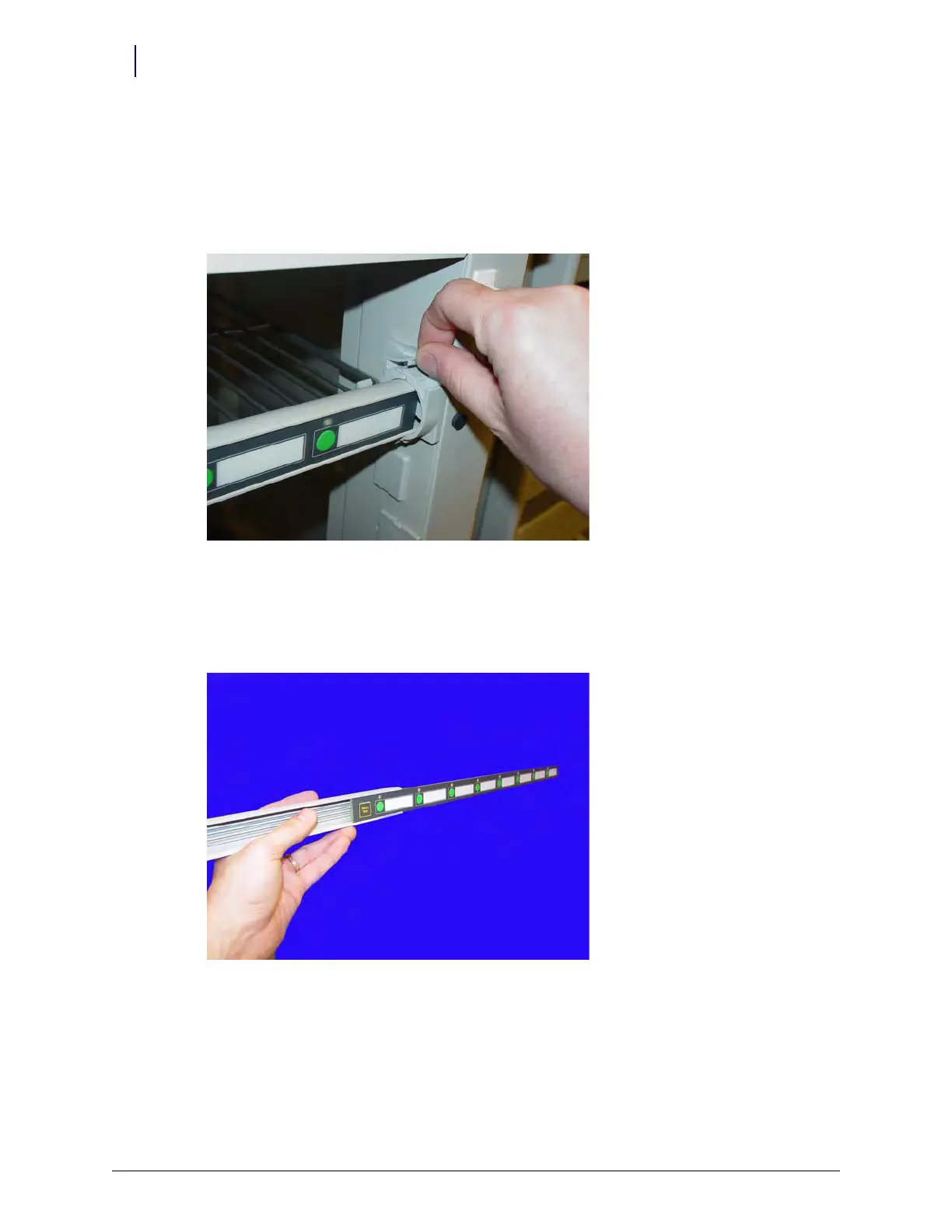

Figure 4-1. Lift the Shelf Clips
2. Disconnect the switchpanel from the SPC board in the wireway.
3. Remove the switchpanel and its holder from the clips.
4. Slide the switchpanel from its holder.
Figure 4-2. Remove the switchpanel from its holder
