OmniCell 2-Cell CTPC - Bottom Bayonet

2-14 Frames and Wireways
Wireway Removal
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
3. Remove the two screws securing each side of the bottom bracket to the frame.

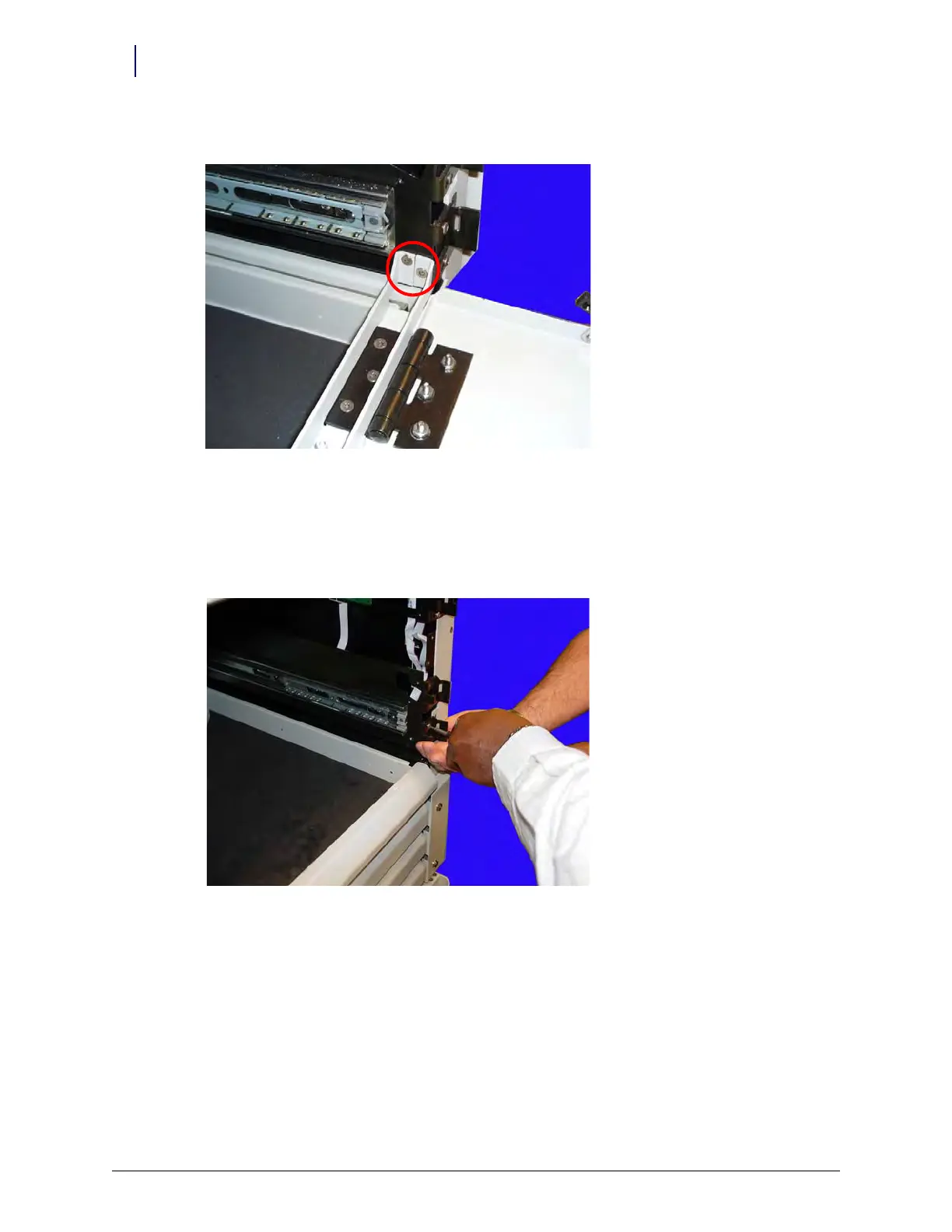

Figure 2-24. Remove the screws securing the bottom bracket
4. Remove the door.
Bottom Bayonet
1. Remove the four screws that secure the bottom bayonet to the frame.
Figure 2-25. Remove the bottom bayonet screws
