14-8 E-Box Service Guide
Remove/Replace the Fans
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
2. Disconnect the fan cables from the PowerCom4 board.

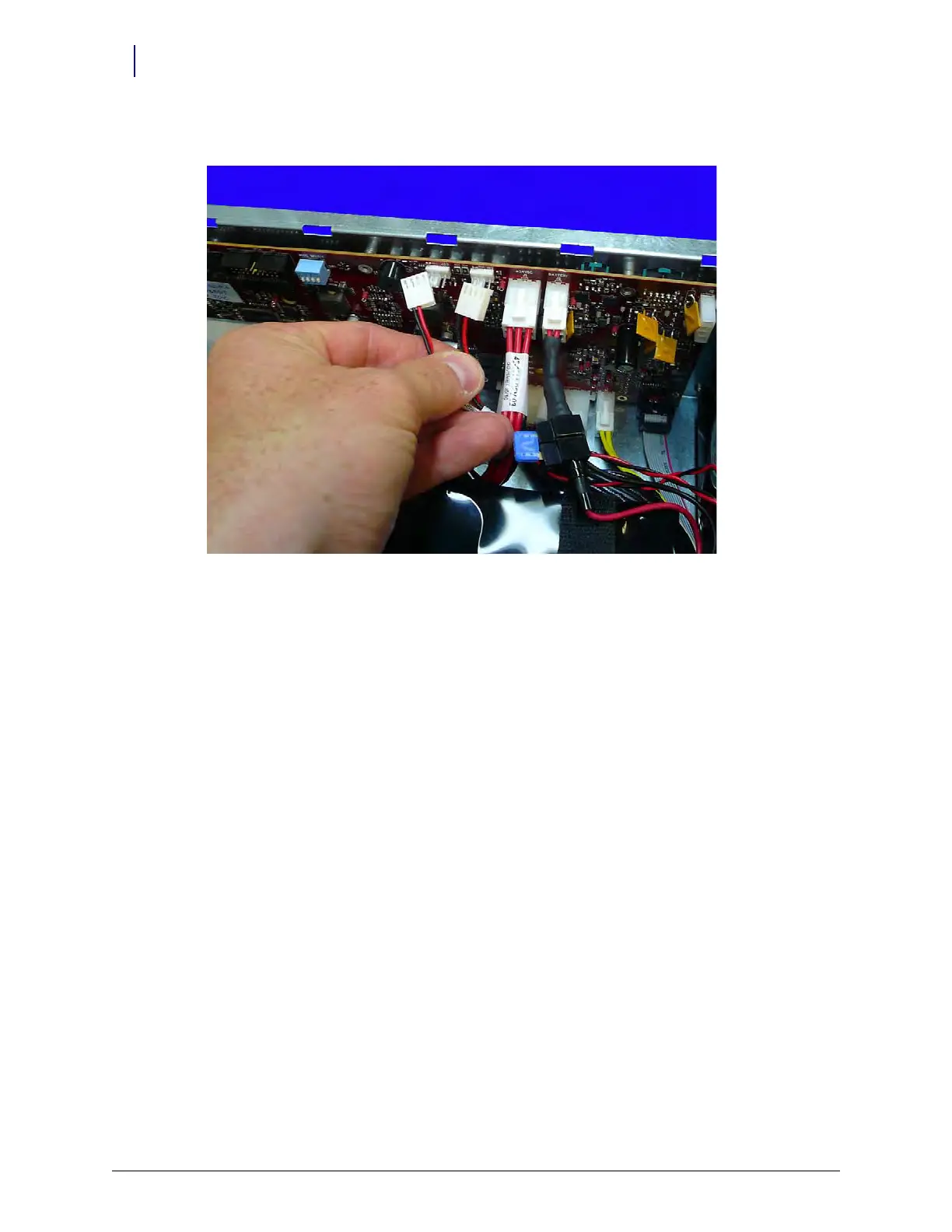

Figure 14-10. Disconnect the fan cables from the PowerCom4 board
3. Remove the fans from the E-Box.
Replace the Fans
1. Hold each fan in place inside the E-Box.
