Shelves 3-1
Removal Procedure
Shelves
Removal Procedure
1. Lift the shelf clips on either side of the switchpanel and open the clips.
o

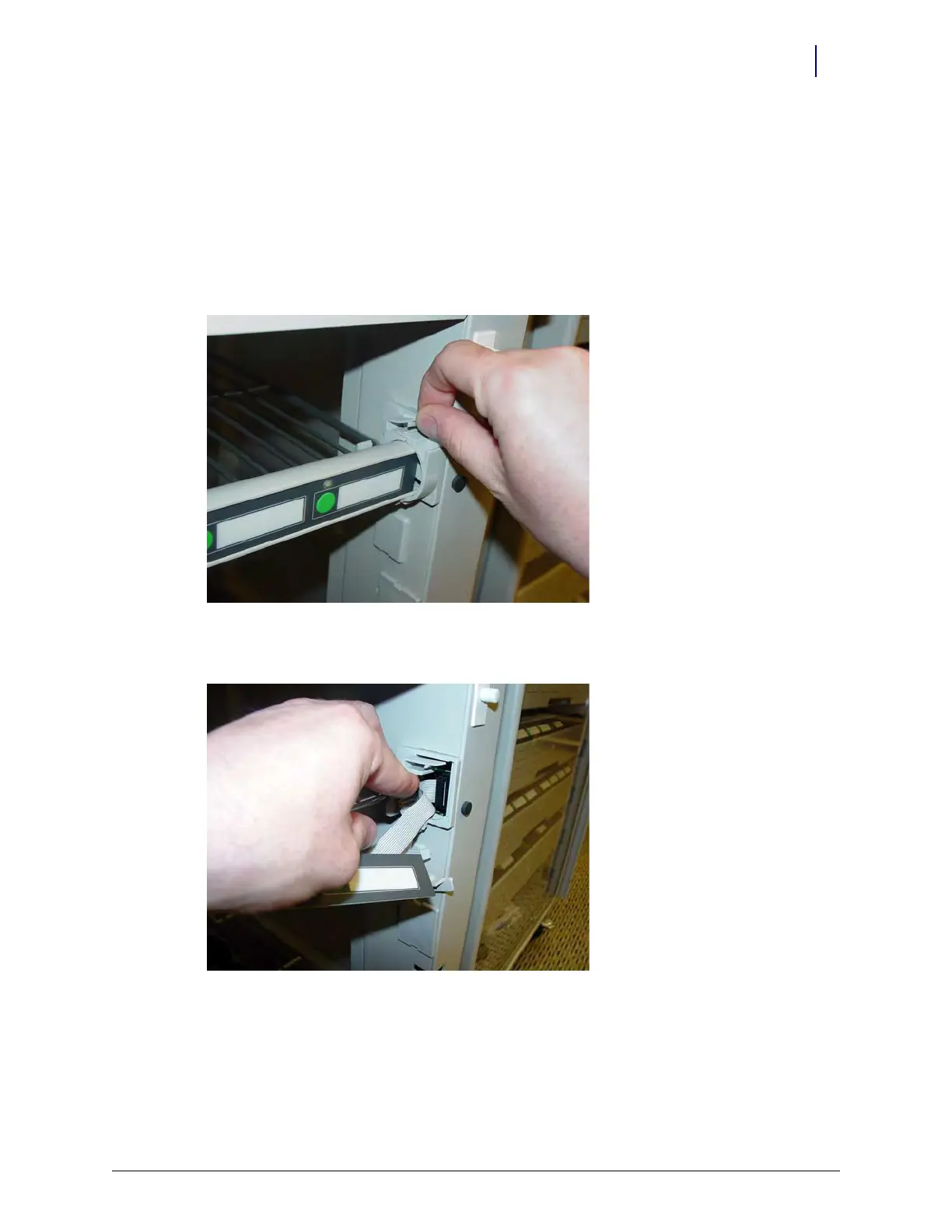

Figure 3-1. Lift the Shelf Clips
2. Disconnect the switchpanel from the SPC board in the wireway.
Figure 3-2. Disconnect the Switchpanel from the SPC Board
