Install the E-Box onto the Console
1. Pull the console as far out as it goes on the rails and slide the E-Box in at an angle from the left
side to install it on the console frame.

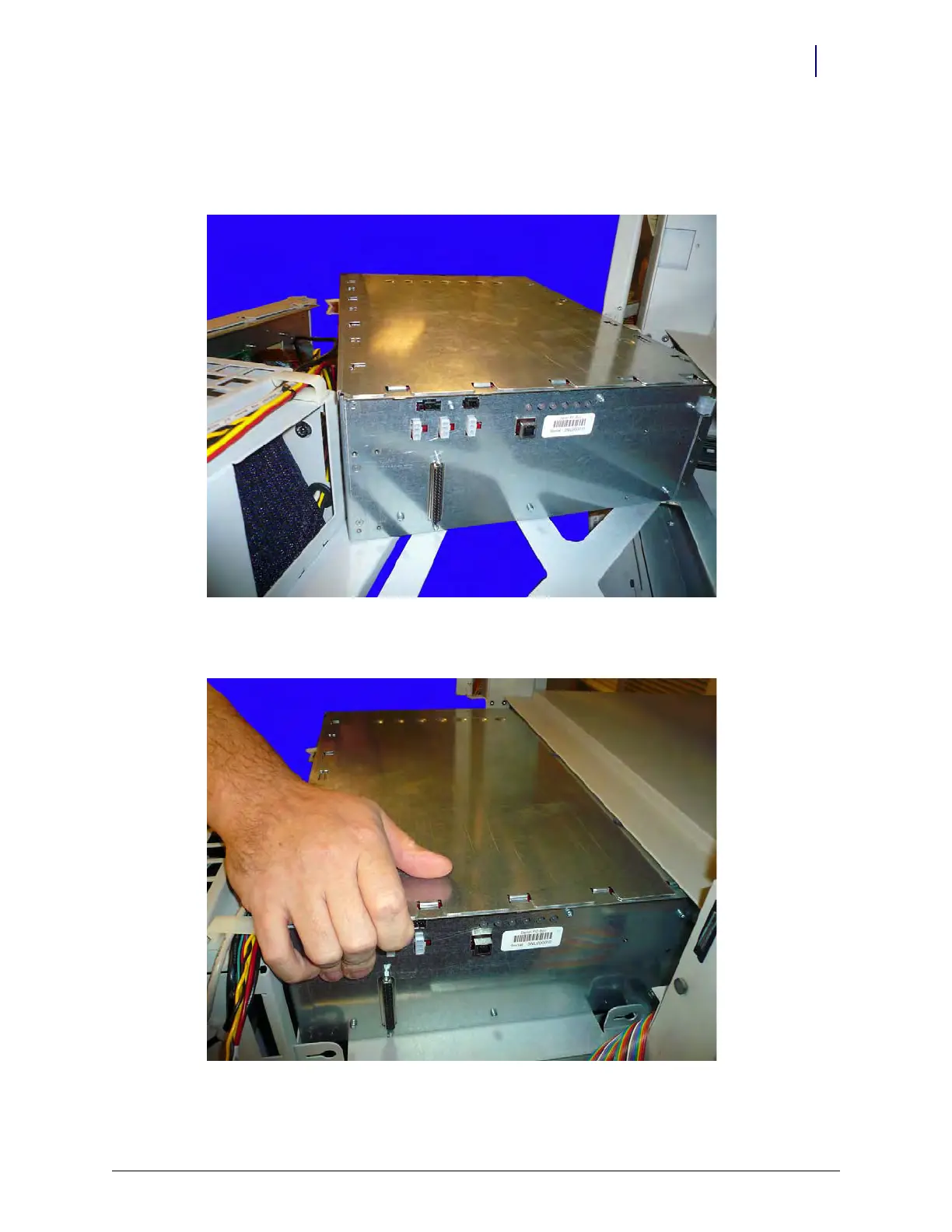

Figure 13-8.
2. Straighten out the E-Box and slide it into place on the CT PC console frame.
Figure 13-9.
