OmniCell 2-Cell CTPC - Replace the Hard Drive

© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
E-Box Service Guide 14-5
Remove/Replace the Hard Drive
Replace the Hard D r iv e
1. Set the hard drive into place inside the E-Box. Make sure not to pinch any wires that may be
present inside the E-Box.

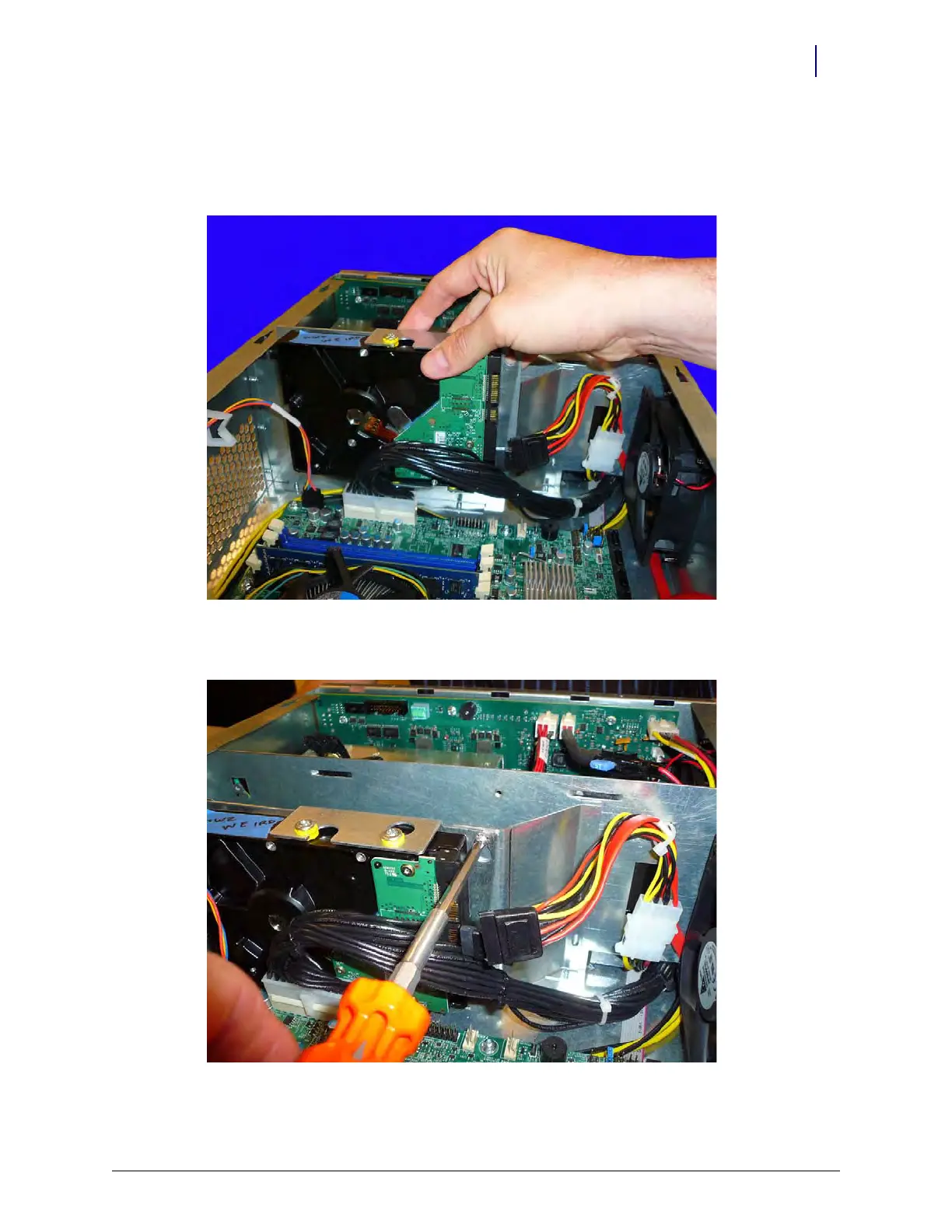

Figure 14-6. Replace the hard drive
2. Tighten the screw that connects the hard drive plate to the E-Box wall.
Figure 14-7. Tighten the screw that secures the hard drive to the E-Box wall
