14-20 E-Box Service Guide
Remove/Replace the Power Entry Module
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
3. Remove the two nuts that secure the power entry module to the E-Box frame. Use a nut driver.

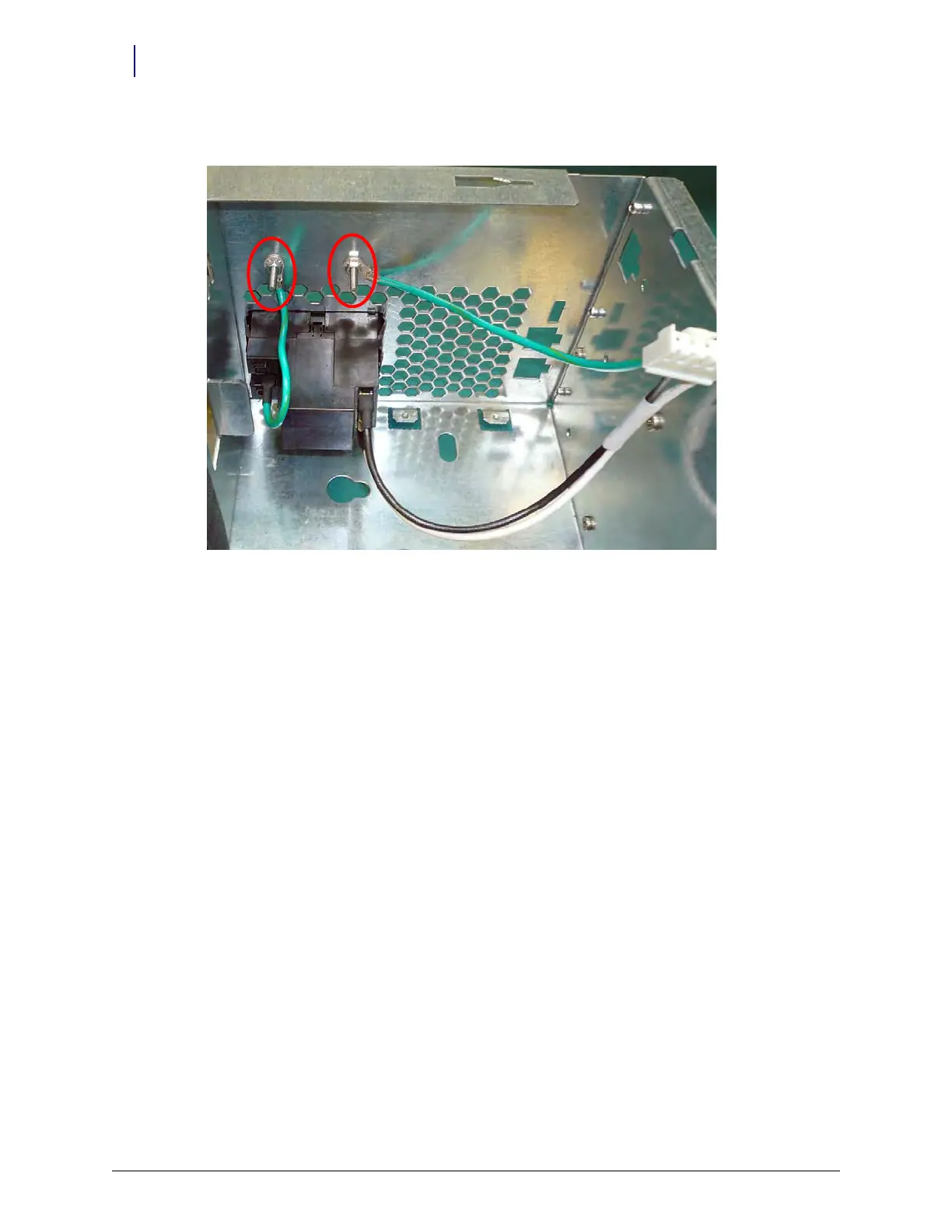

Figure 14-30. Remove the screws securing the power entry module to the E-Box
4. Pinch the tabs on the inside corners of the power entry module and push it out from the inside
of the E-Box.
5. Remove the power entry module from the E-Box.
Replace the Power Entry Mo dul e
1. Feed the cables through the back of the E-Box into the box.
2. Pinch the tabs on the corners of the power entry module and push the module from the rear
into the box.
