OmniCell 2-Cell CTPC - Replace the Battery

© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
E-Box Service Guide 14-11
Remove/Replace the Battery
Replace the Ba tter y
1. Set the battery into place inside the E-Box. Make sure not to pinch any wires coming from the
power entry module.
2. Replace the velcro straps that secure the battery to the E-Box frame.

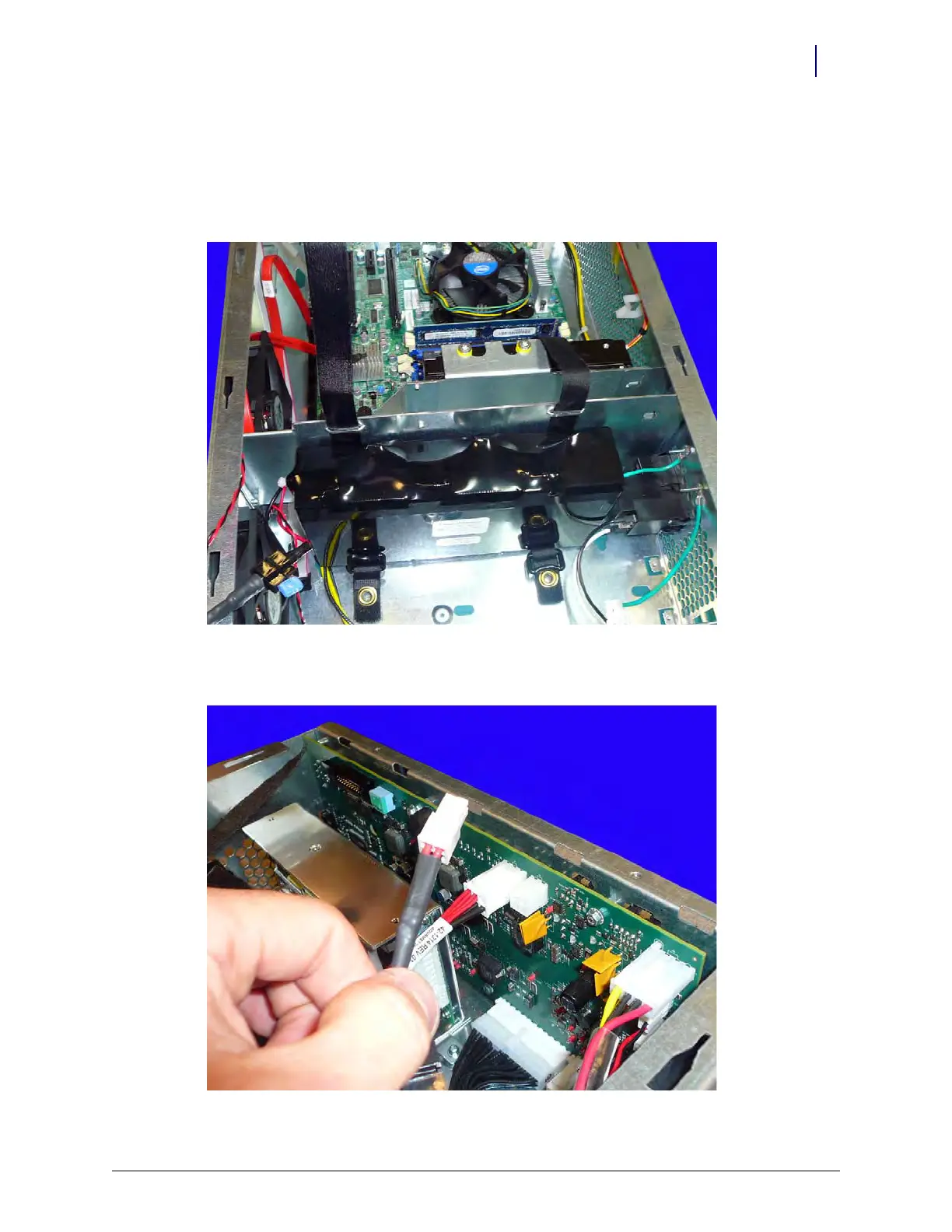

Figure 14-15. Set the battery on the straps and secure the straps
3. Connect the cable that connects the battery to the PowerCom4 board.
Figure 14-16. Connect the battery cable to the PowerCom4 board
