12-10 Installing a G4 Console
Prepare for Installation of the G4 Console
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
Add the Ribbon Cable
1. Add the new ribbon cable, plugging in both connectors to the wireway.

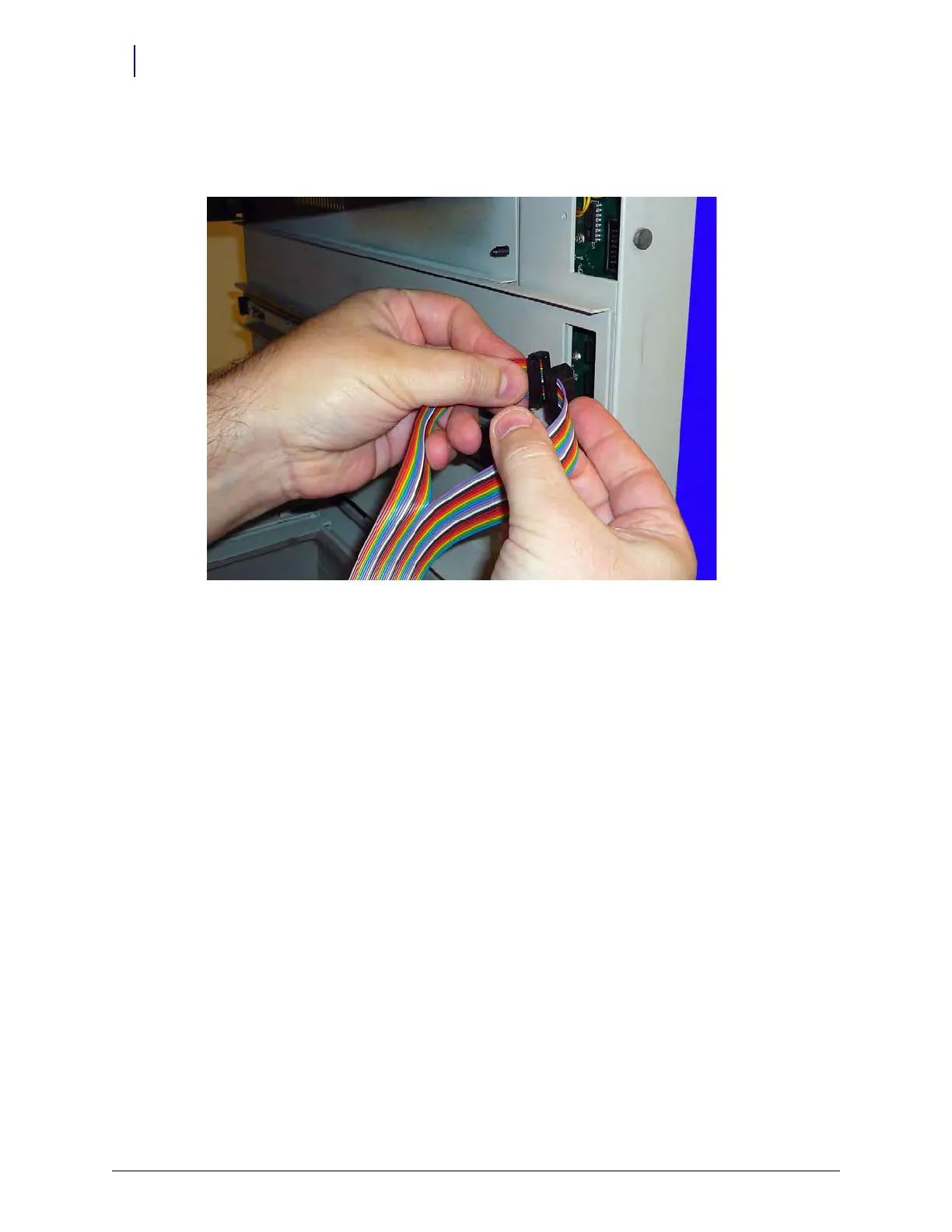

Figure 12-15. Place the ribbon cables into the wireway
