OmniCell 2-Cell CTPC - E-Box Service Guide; Introduction; Tools Required; Open the E-Box

© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
E-Box Service Guide 14-1
Introduction
E-Box
Service Guide
Introduction
This procedure will guide the user through the procedures required to remove a G4 E-Box and
replace any FRU parts within the E-Box.
Tools Required

Torx T10 driver

Torx T15 driver

Torx T20 driver

Phillips #1 screwdriver

Standard Blade Screwdriver
Open the E-Bo x
1. Remove the three screws that secure the E-Box lid.

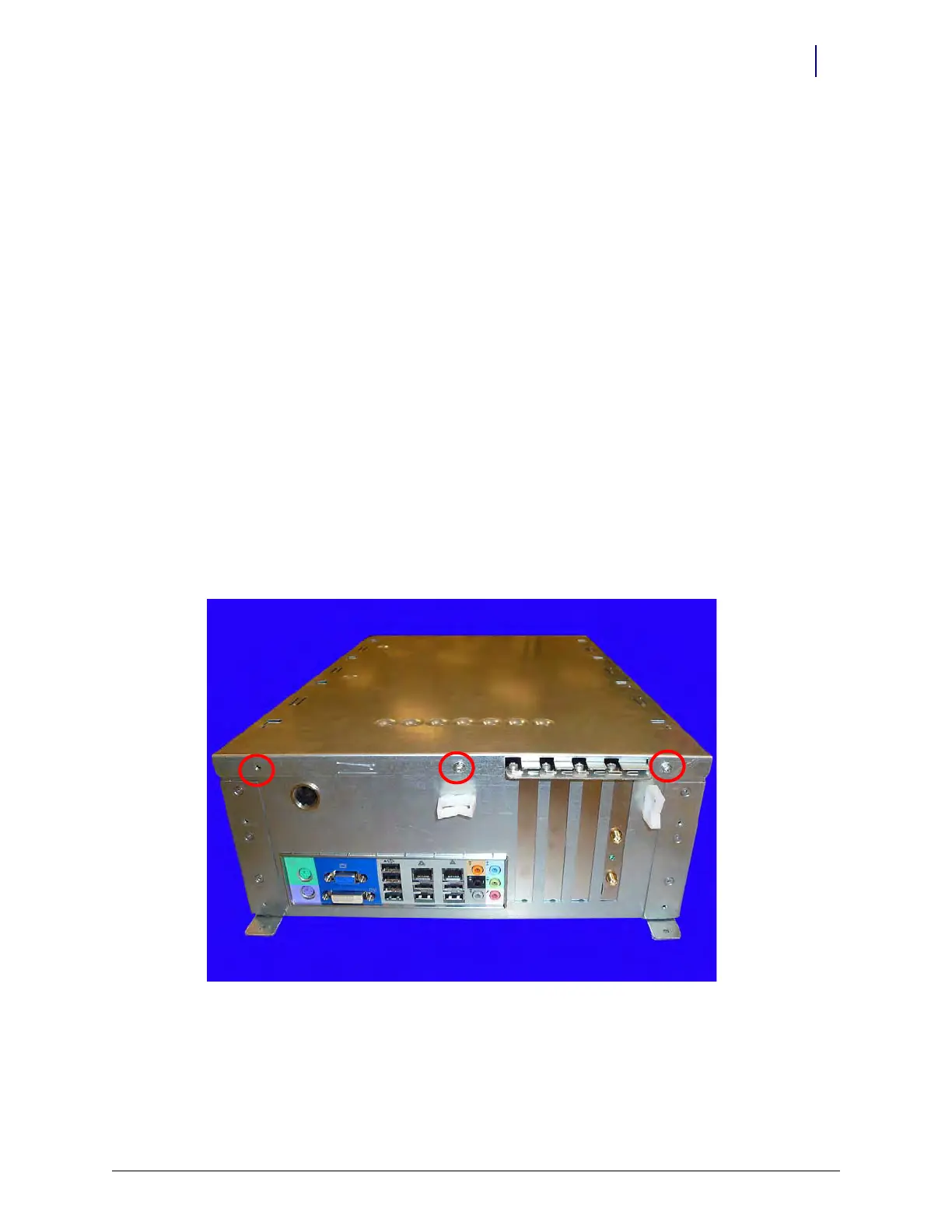

Figure 14-1. Remove the screws that secure the E-Box lid
2. Using the finger holds in the lid, pull the lid forward and lift it to remove it from the frame.
