16. Secure each of the slide support brackets to the right carrier wall with two screws using a Torx
T15 screwdriver.

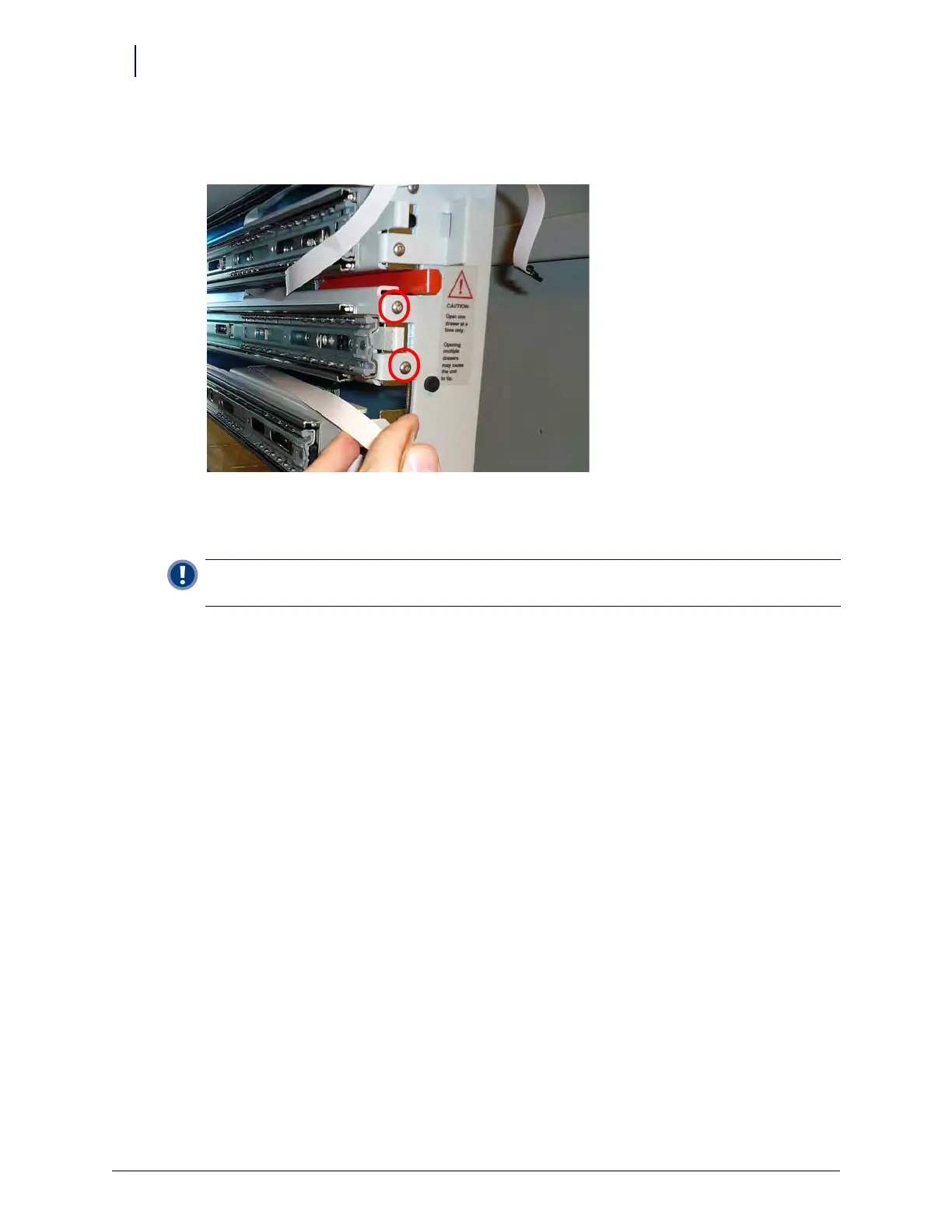

Figure 7-17. Secure the slide support bracket
17. Place the drawer controller cable flat on top of the slide support bracket and hold it down
before replacing the pharmacy drawer.
18. Place the bottom drawer onto the rails and push it all the way into the cabinet.
19. Pull the drawer back out until as far as it will go.
20. Place the drawer controller cable onto the drawer and connect the cable to the drawer.
21. Replace the pharmacy drawer controller cable clamp and the drawer controller cable to the
pharmacy drawer with the two screws provided with a Torx T10 screwdriver.
22. Close the drawer
23. Repeat the steps for the other two drawers.
24. Replace the pharmacy manual override cover.
Configuration
1. Power up the cabinet.
2. Program the drawer at the OmniSupplier in OmniConfigurations.
3. Log on by entering a valid user ID and Password.
4. Select OmniConfigurations > Zone Type Configurations.
5. Change the value of the zone to
2.
6. Select Zone Access Configurations.
7. Change the value of the zone to
1.
8. Select Pharmacy Options.
9. Change Support Pharmacy System to
Yes.
Important: The cable must be flat to prevent damage during installation of the drawer. Ensure that the cable
is between the bracket and tab on the right rear of the pharmacy drawer when installing the drawer.
