7-4 Drawers
Labeling
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
Labeling
Numerical bin labels are provided with matrix drawers to make bin identification and restock
easier for the customer.
The bottom of the bin liner on any matrix drawer is numbered according to its type (i.e. 1-96, 1-
24, 1-4). These numbers are used to identify bin locations for the drawer. The drawer will be
numbered by using the lowest number in a specific bin.
In the following example, the bin in the lower right corner of the drawer would be Bin 7, the bin in
the upper left corner would be Bin 49, and the bin in the upper right corner would be Bin 85.

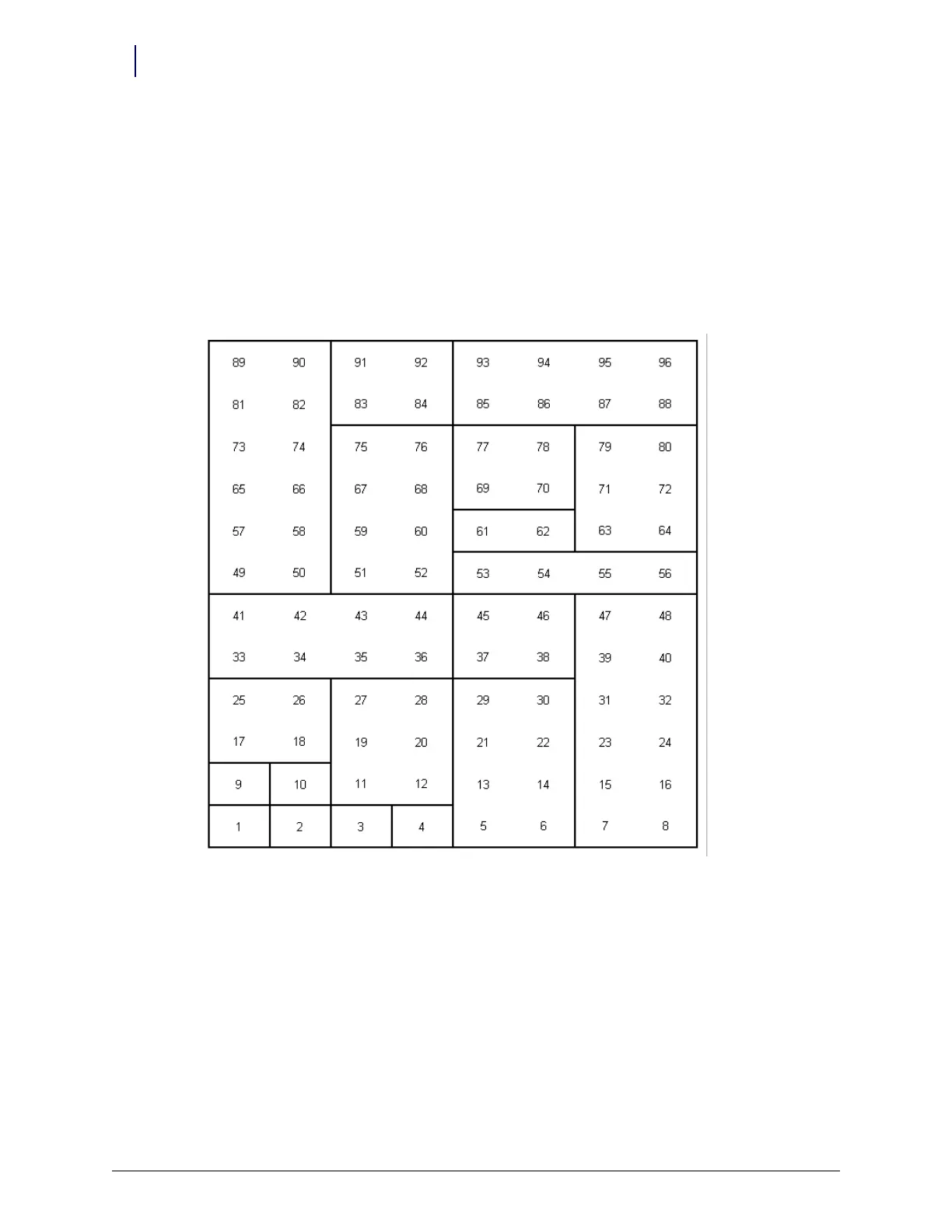

Figure 7-3. Matrix Drawer labeling System
Once a bin has been configured, label the bin divider to correspond with the bin name corner. and
affix the label to the top of the right rear divider of that bin.
