© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
Frames and Wireways 2-9
Wireway Removal
6. Remove the rail frame from the OmniDispenser.

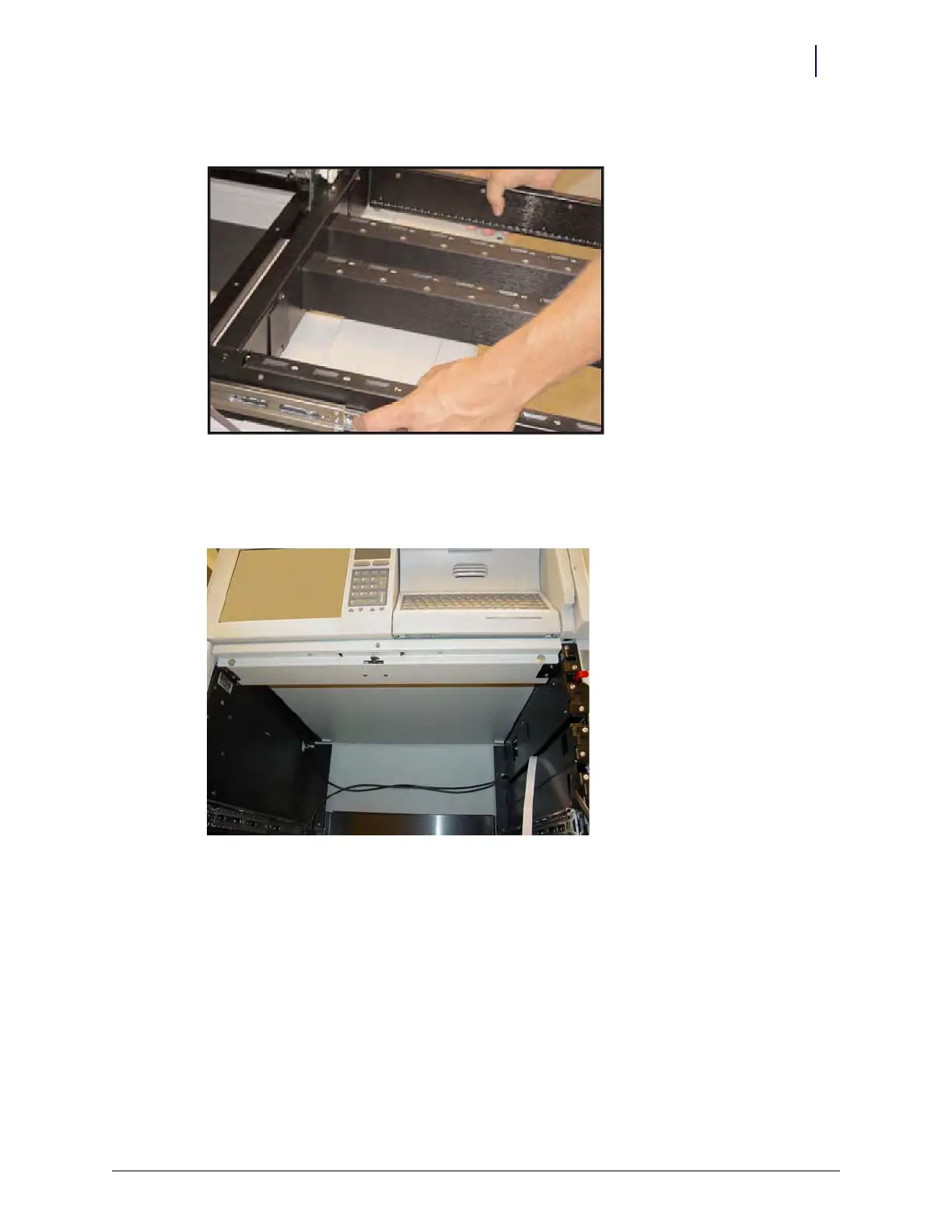

Figure 2-14. Remove the rail frame from the OmniDispenser
Ribbon Cable
1. Remove the four screws, two on each side, that secure the top tray to the frame.
Figure 2-15. Remove the four screws securing the top tray to the frame.
