2-8 Frames and Wireways
Wireway Removal
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
3. Loosen the screw securing the rail cable bracket to the rail frame.

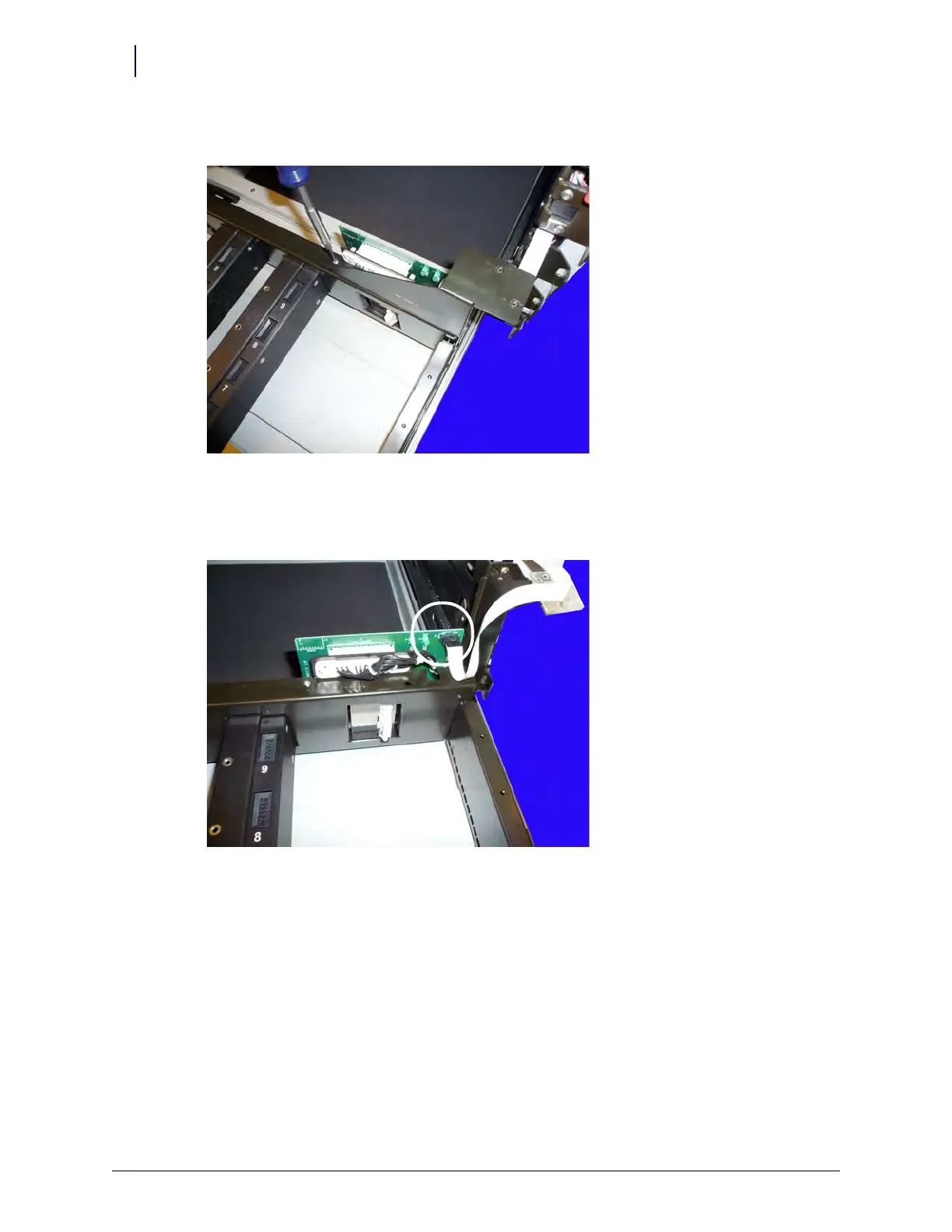

Figure 2-12. Loosen the screw securing the rail cable bracket to the rail frame
4. Remove the rail cable bracket.
5. Disconnect the rail cable from P1 on the rail controller board.
Figure 2-13. Disconnect the cable from P1 on the rail controller board
