Switchpanels 4-5
Removal Procedure
From a Suture Rack

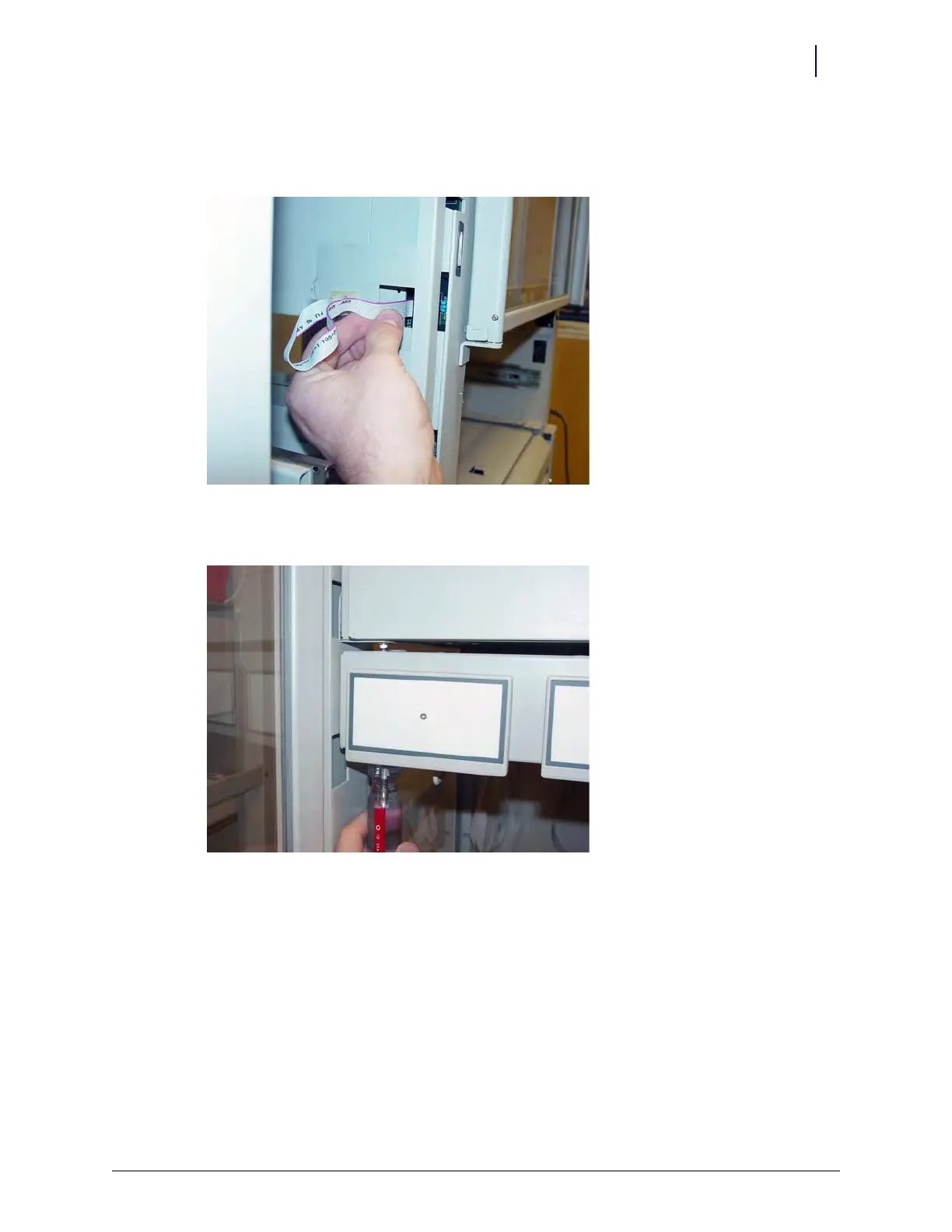

1. Pull the suture rack’s right-most rack forward, then disconnect the SPC board cable.
Figure 4-6. Remove the SPC board cable
2. Remove the two screws securing the rack to the housing using a 3/32” Allen wrench.
Figure 4-7. Remove the screws securing the suture rack to the housing.
3. Remove the suture rack from the L-brackets.
4. Open the suture rack and locate the LED cable.
