4-6 Switchpanels
Removal Procedure
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.

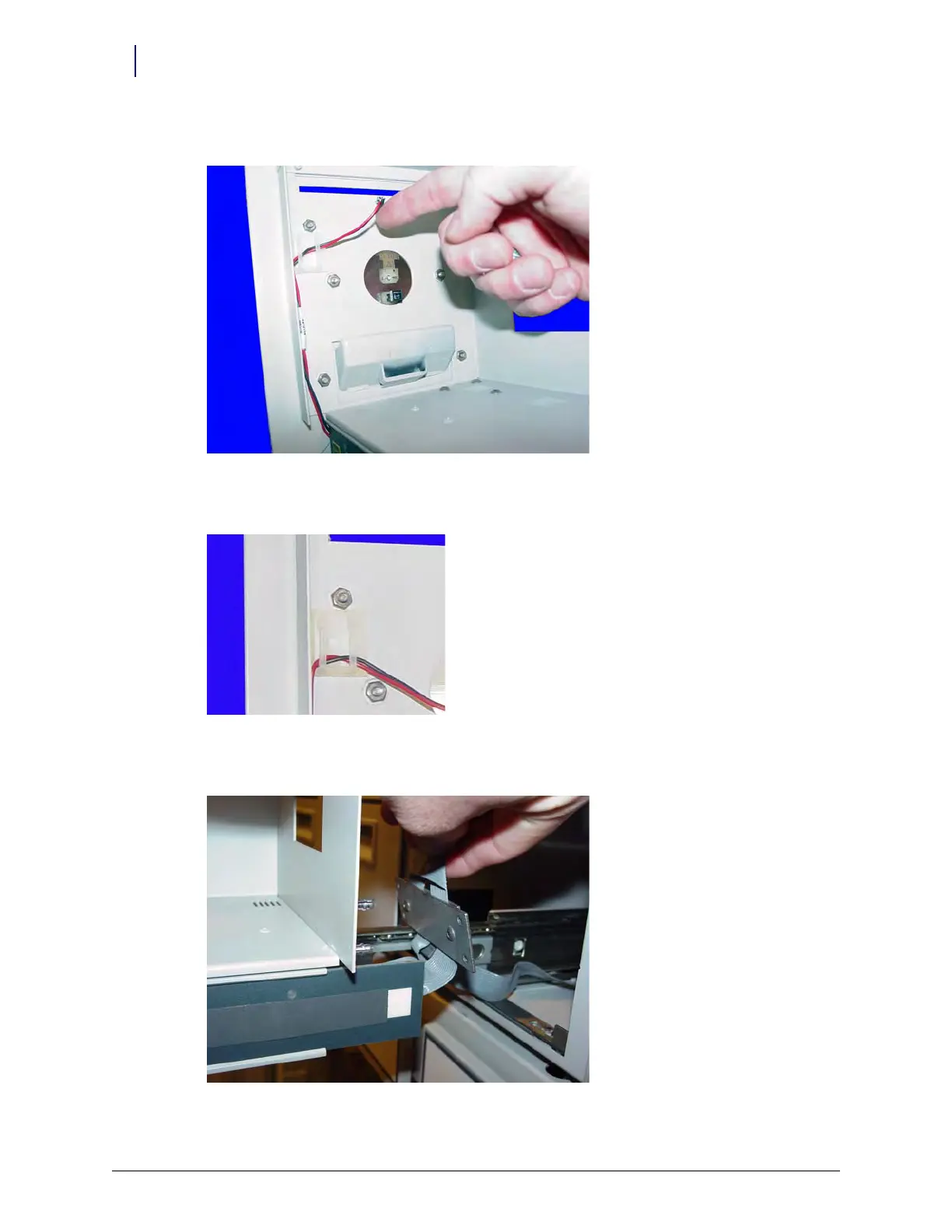

5. Disconnect the LED cable from the wireway connector.
Figure 4-8. Disconnect the LED cable
6. Remove the LED cable from the plastic routing clip.
Figure 4-9. Remove the LED cable from the plastic routing clip
7. Remove the cable plate from the rear of the housing.
Figure 4-10. Disconnect the cable plate from the suture rack drawer
