2-10 Frames and Wireways
Wireway Removal
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.

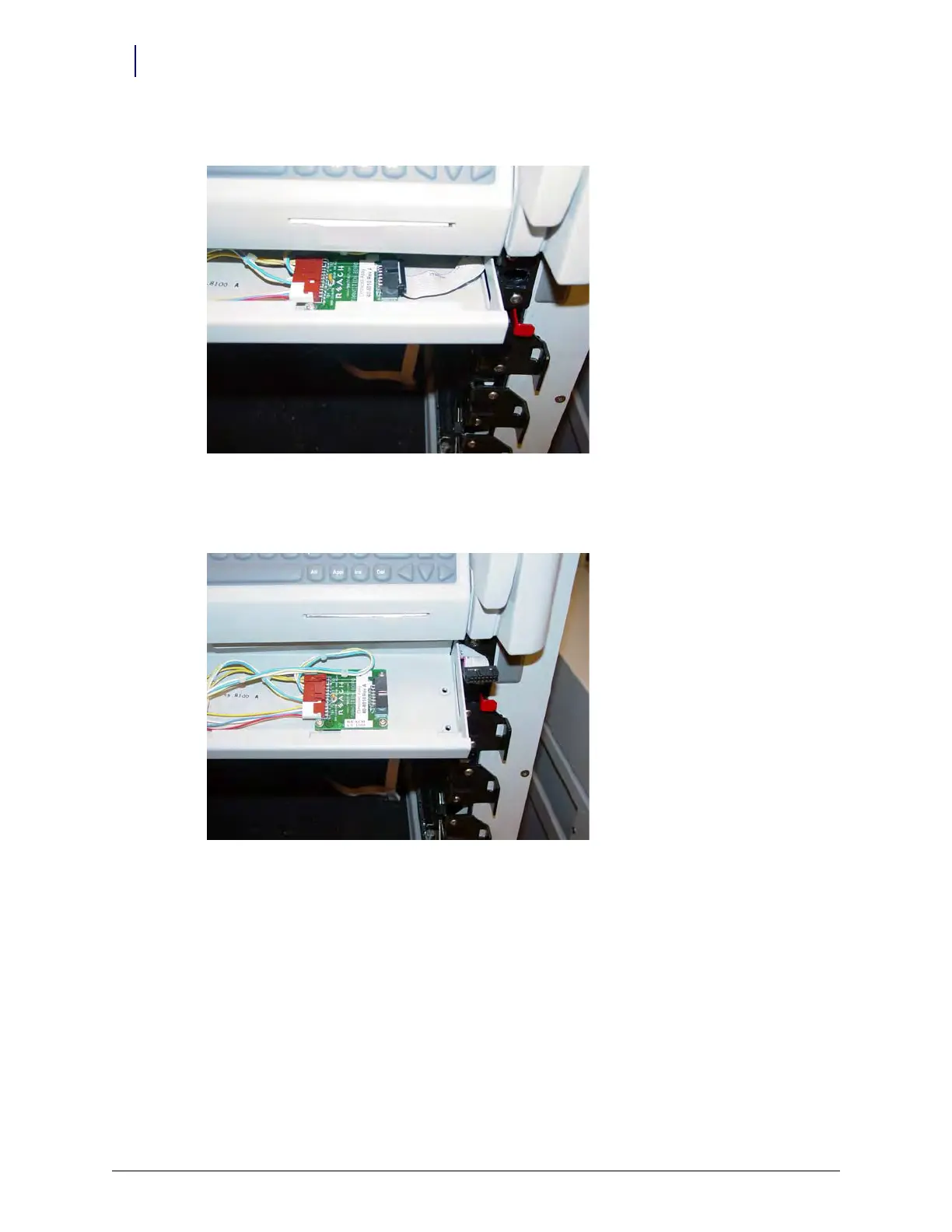

2. Pull the top tray out far enough to reach the ribbon cable.
Figure 2-16. Pull out the top tray
3. Disconnect the ribbon cable from the reach board and pull the ribbon cable through the
opening on the right side of the tray.
Figure 2-17. Remove the ribbon cable from the slot on the right side of the tray.
