14-4 E-Box Service Guide
Remove/Replace the Hard Drive
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
2. Loosen but do not remove the screw that connects the hard drive plate to the E-Box wall.

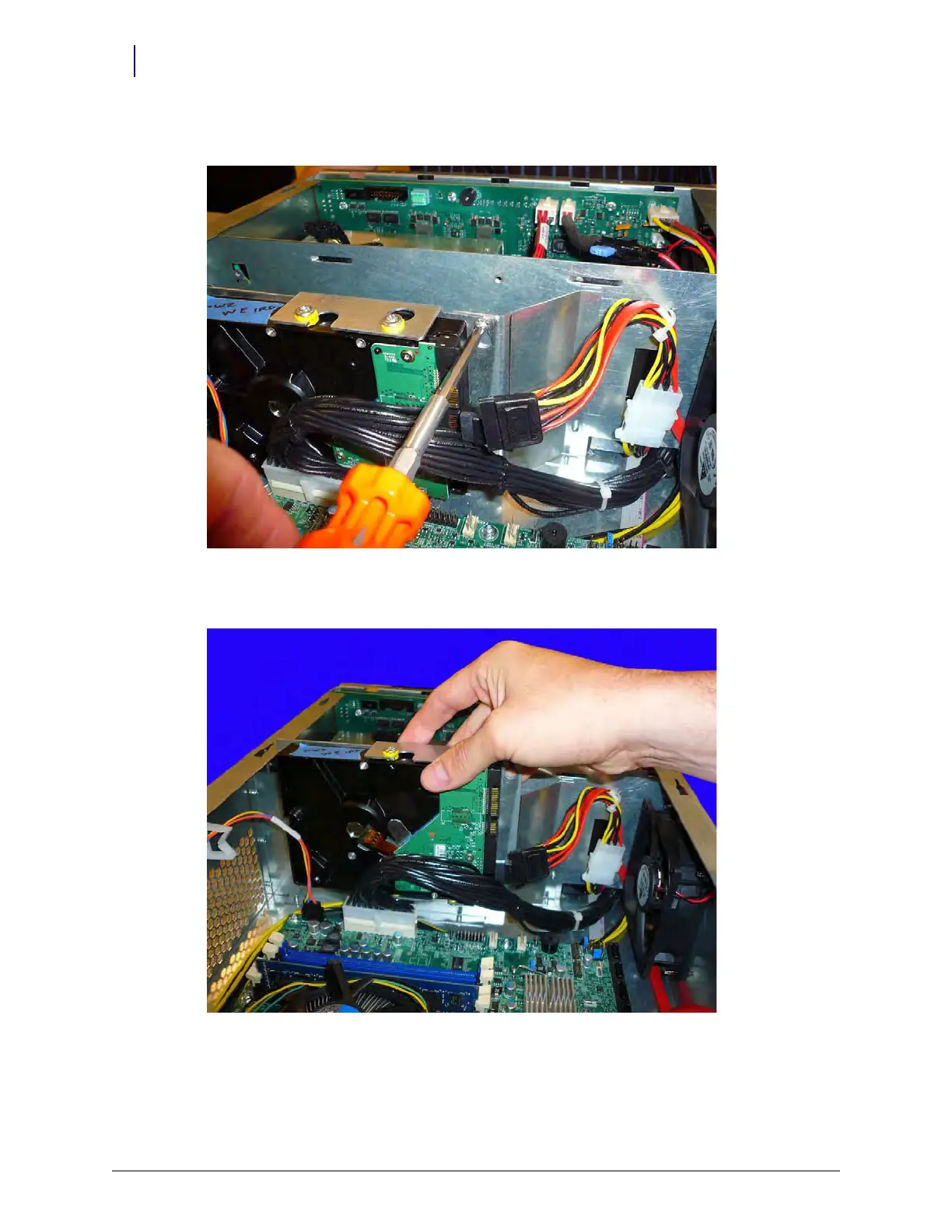

Figure 14-4. Loosen the screw that secures the hard drive to the E-Box wall
3. Lift the hard drive up, pull it away from the drive all, and remove it from the E-Box.
Figure 14-5. Remove the hard drive
