OmniCell 2-Cell CTPC - Page 142

13-4 G4 PC Box Service
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.

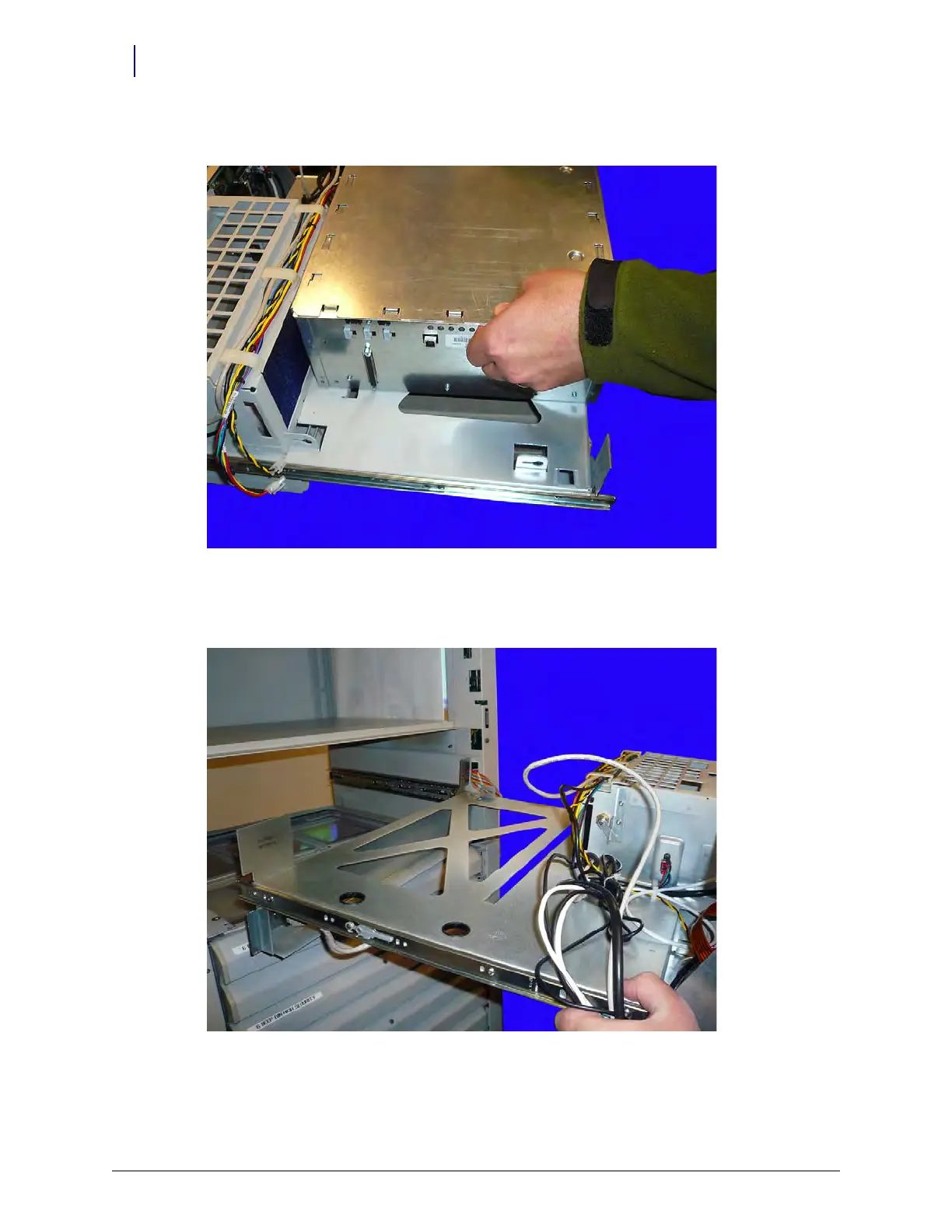

5. Slide the E-Box away to the left, then lift and remove it from the CT PC console.
Figure 13-6. Remove the E-Box from the frame
6. Push down on the two side clips that secure the PC Box frame to the console and pull the
frame from the console.
Figure 13-7. Remove the frame from the console
