G4 PC Box Service 13-7
4. Reconnect the three cables on the right-hand side of the E-Box. The location of the two
bottom molex connectors is unimportant. The connections are the same and supply identical
power.

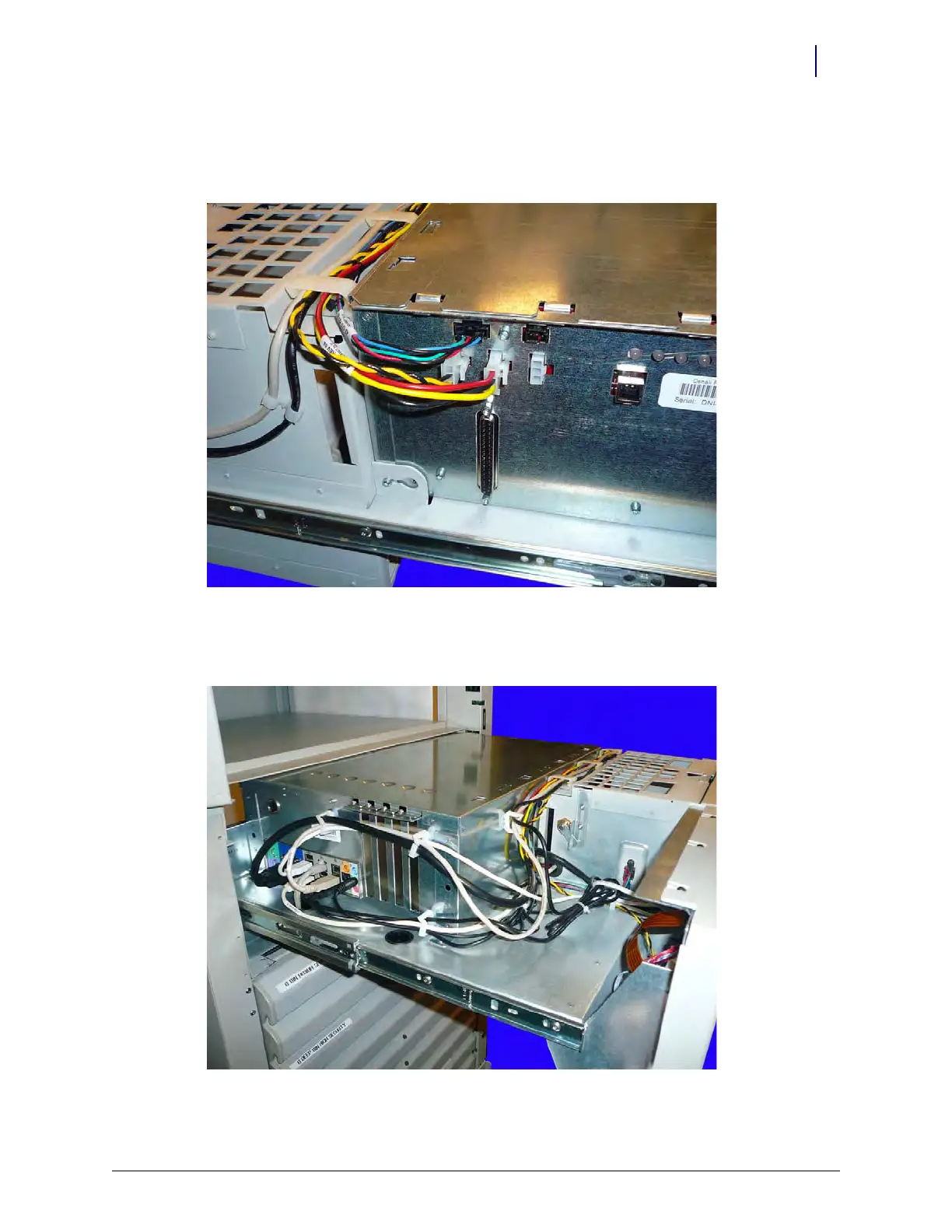

Figure 13-12.
5. Reconnect the USB, power, sound and network cables on the left-hand side of the E-Box. refer
to Figure 13-13 to ensure that the cables are routed in the proper locations.
Figure 13-13.
