3-4 Shelves
Installation Procedure
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
5. Connect the switchpanel to the SPC board in the wireway.

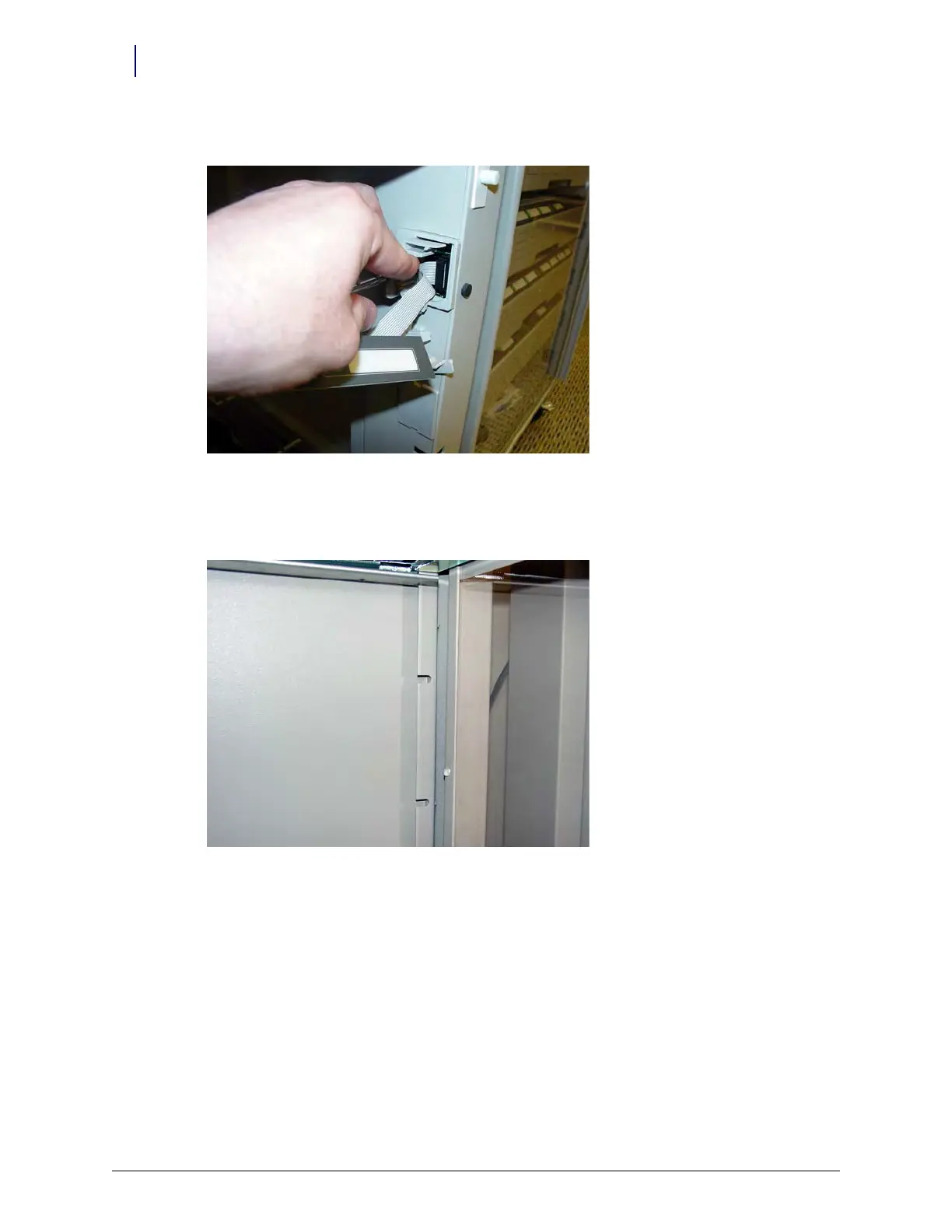

Figure 3-7. Connect the Switchpanel to the SPC Board
6. Insert the switchpanel and the holder into the shelf clips and close the clips.
7. Slide the shelf into the mounting slots at the back of the frame.
8. Lower the shelf into the shelf supports and ensure they are locked into place.
9. Place the clips on the shelf at the required position.
