7-16 Drawers
Removal Procedure
1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G © 2011 Omnicell, Inc.
4. Remove the two screws securing the drawer controller cable cover to the cable clamps with a
Torx T10 screwdriver.

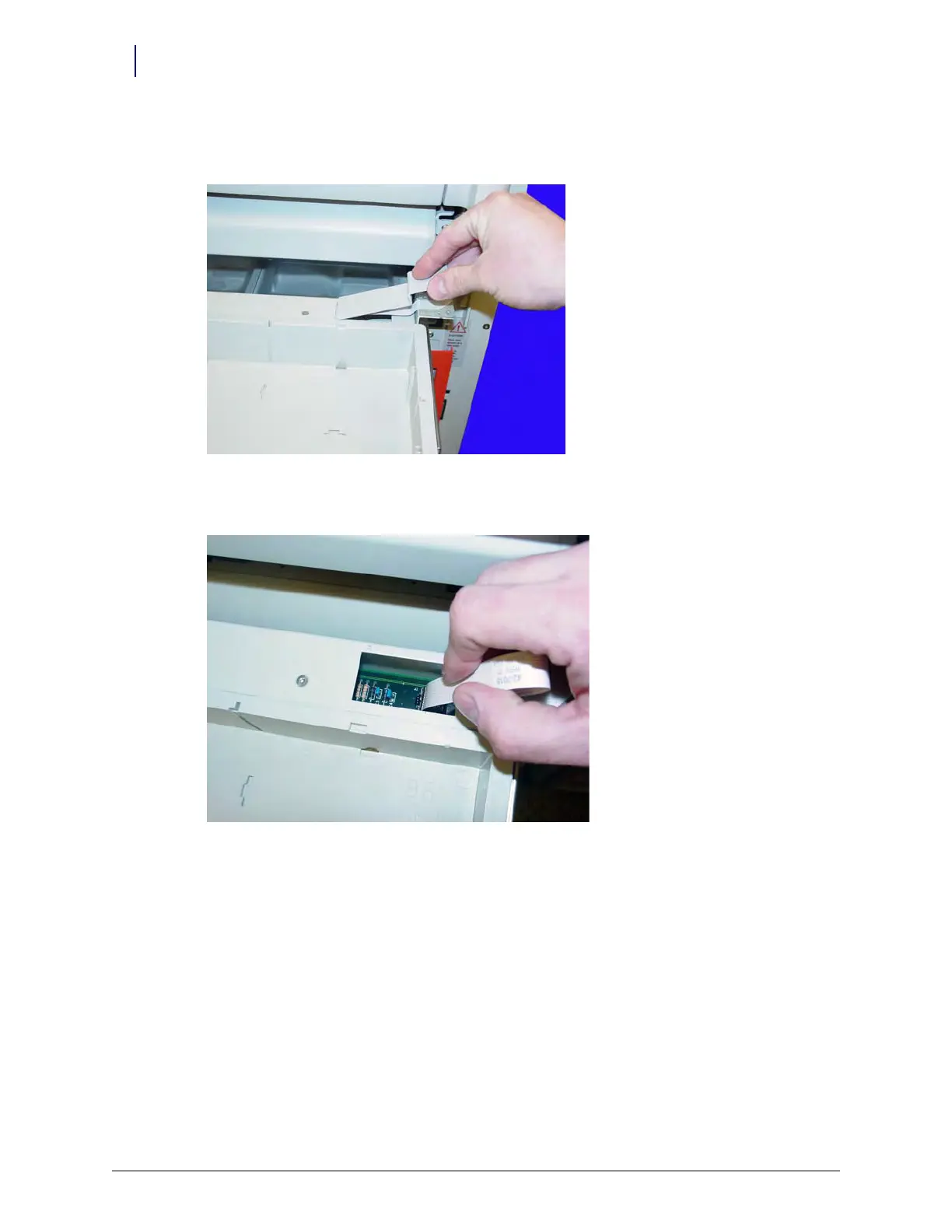

Figure 7-19. Remove the controller cable cover
5. Remove the cable clamp and disconnect the cable.
Figure 7-20. Remove the controller cable
