9 Saving/Loading Data
9 - 20
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

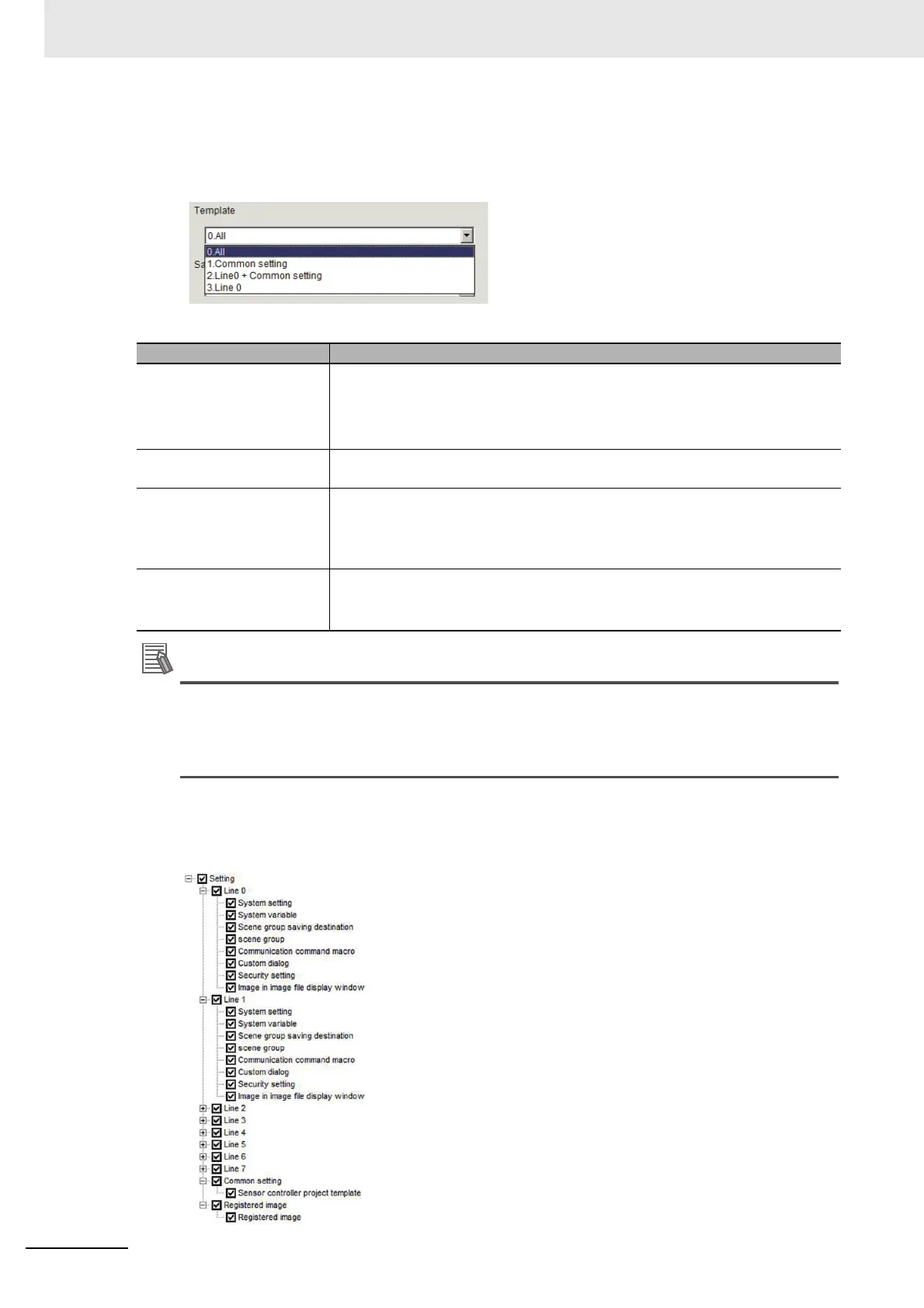

3 Select a template.
By selecting a template, it is possible to choose combination of the data for back up.
Templates are as follows.
Additional Information
• It is possible to change the setting of a template.
Refer to Editing a Template on page 9-22.
• Please refer to below for details of setting data.
Refer to Setting data which can be backed up on page 9-16.
4 Select the check box of the settings data to save.
Clear the check box for any settings you do not want to have saved.
Template name Description
All Use in multi-line random trigger mode.
All settings can be backed up in Configuration Copy.
All setting data for the line 0 to 7 and all common setting data for the Sensor Con-
troller will have their check box selected.
Common setting All common setting data of the Sensor Controller will have their check box
selected.
Line0 + Common setting Use in Standard (operation mode), Double speed Multi-input mode and Non-stop
Adjustment mode.
All setting data for the line 0 and all common setting data of the Sensor Controller
will have their check box selected.
Line0 Use in Standard (operation mode), Double speed Multi-input mode and Non-stop
Adjustment mode.
All setting data for line 0 will have their check box selected.
(example)
