2 Quick Start
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
2-2 MicroHAWK and WebLink
Quick Start
2
2-2-1 Check Hardware and Connect the System
MicroHAWK V430-F
• Mount the reader securely in its stand (not supplied).
• Mount the reader as required by the application.
• Connect the power cable to the MicroHAWK V430-F.
• Connect the Ethernet cable to the MicroHAWK V430-F.
• Connect the Ethernet cable to the host.
• Connect the power cable into the power source.
Important: See Appendix A for V320-F, V330-F, V420-F, and V430-F pin assignments and hardware
configurations.

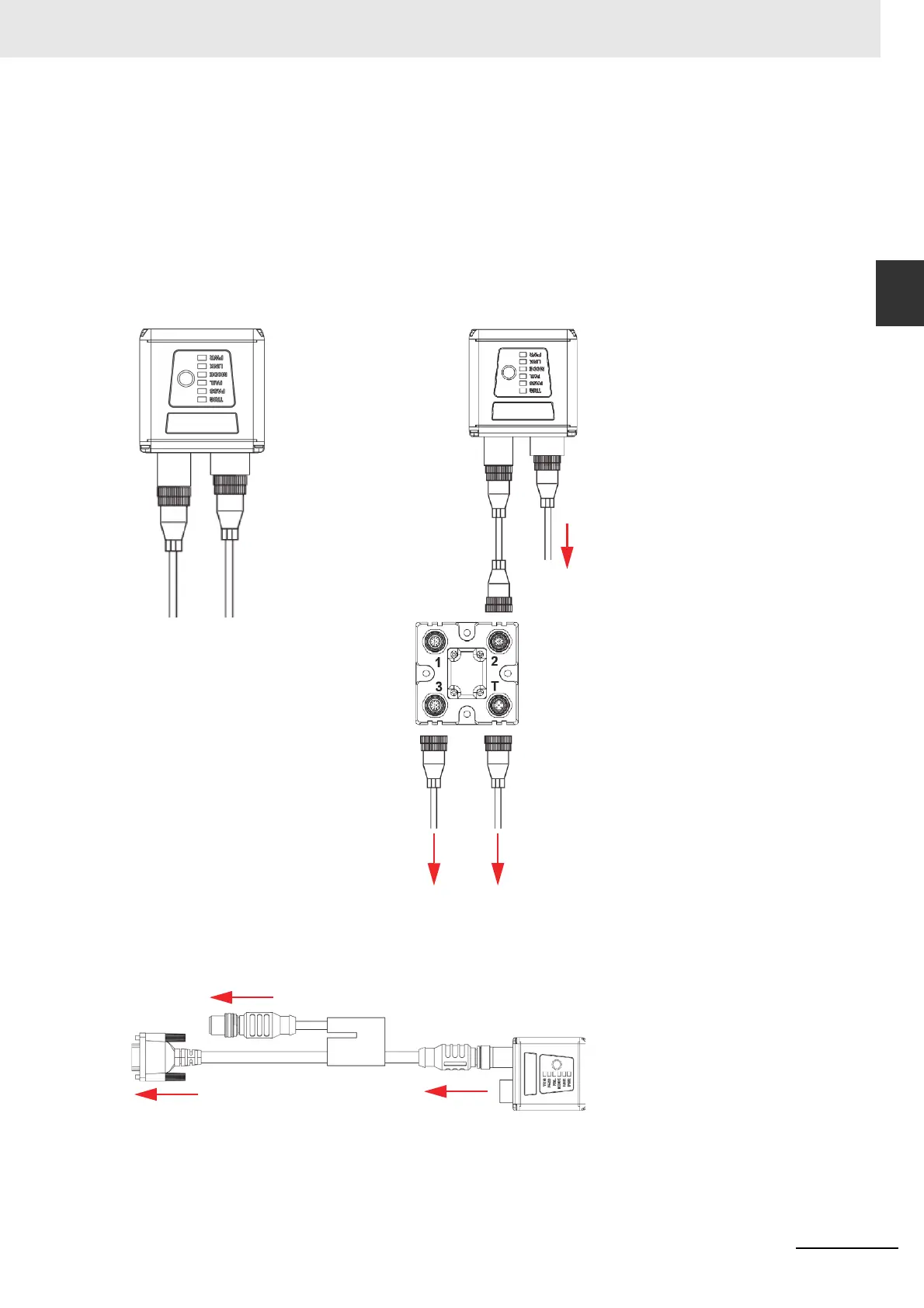

To Power
Supply
(12-Pin Plug)
To Host
(Ethernet
8-Pin Plug
to RJ45)
V430-F Simple Configuration
Common
(12-Pin Plug
to 12-Pin
Socket)
To Host
(Ethernet
8-Pin Plug
to RJ45)
To Trigger
To Power
Supply
V430-F with QX-1 Interface Device
V430-F M12 12-Pin Socket to 9-Pin Socket and M12 Plug
To Power Supply or: Flying Lead Cable
(61-000167-02); QX-1; MS-Connect 210.
To Host
(RS-232)
To Ethernet
