2 Quick Start
2-6
MicroHAWK V320-F / V330-F / V420-F / V430-F Barcode Reader User Manual
• Position the reader several inches from the symbol. You may need to reposition the reader a few
times to find the ideal distance.
• Tip the reader relative to the symbol to avoid the glare of direct (specular) reflection.
• Symbols can be rotated (tilted) at any angle; however, for best results symbols should be aligned with
the field of view. In the case of linear symbols, aligning the bars in the direction of their movement
(ladder orientation) will minimize the chances of blurring and will result in more consistent decodes.
• Important: Avoid excessive skew or pitch. Maximum skew is ±30°; maximum pitch is ±30°. The

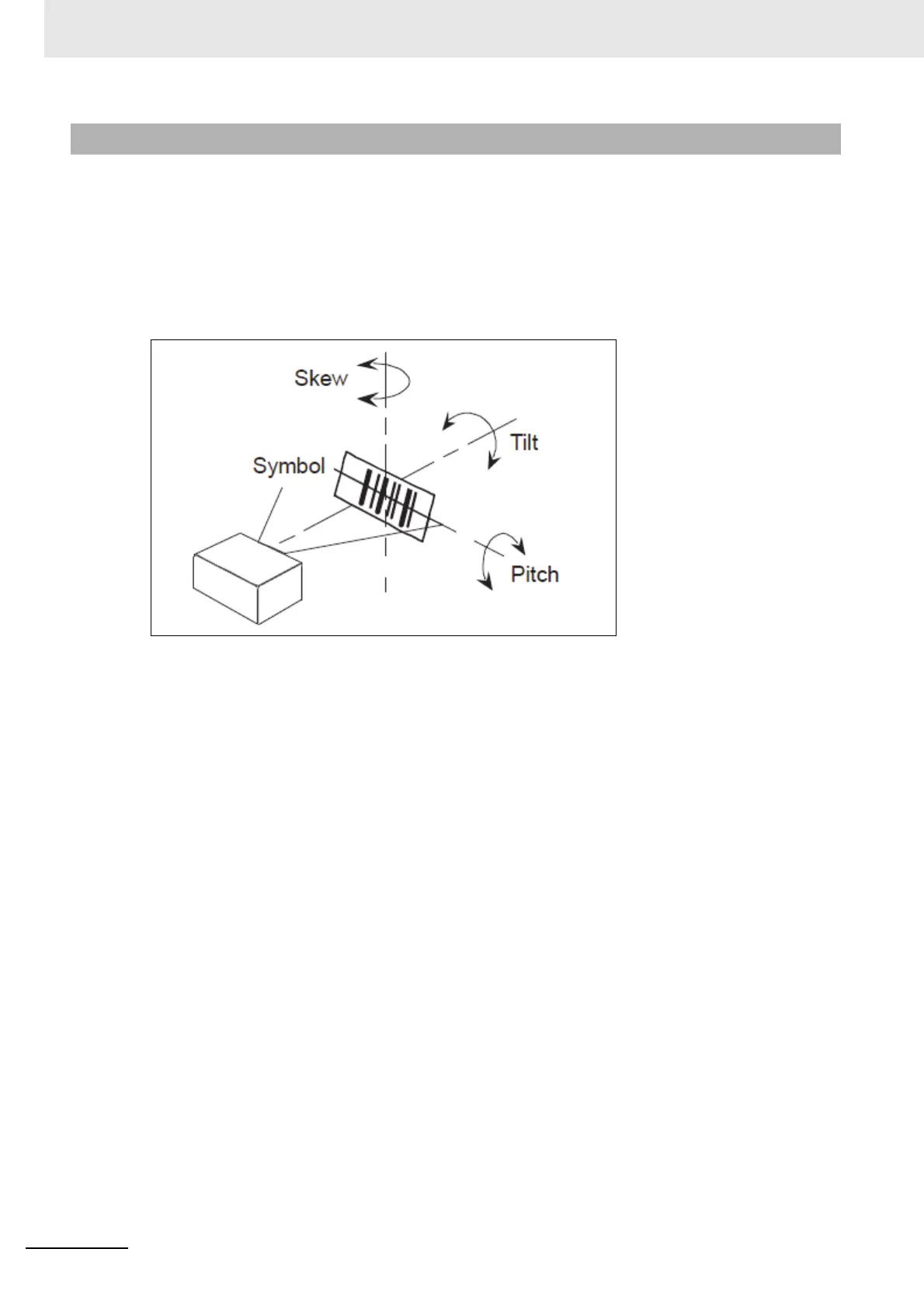

illustration below shows approximate skew axis, pitch axis, and tilt axis.
2-2-2 Mount and Position the Reader
Reader and Symbol Orientation
