Additional Information

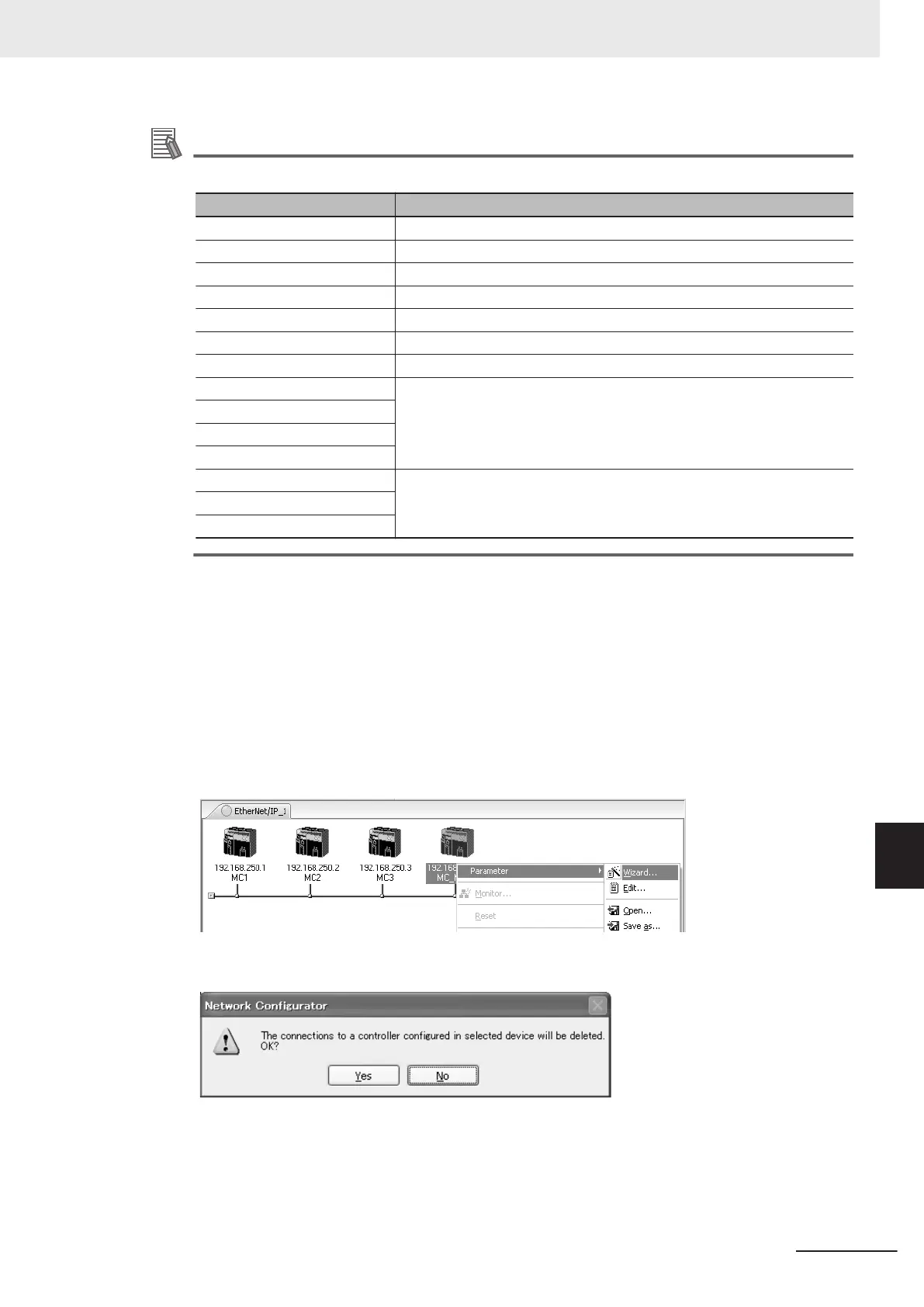

The Wizard can be used only with the following OMRON EtherNet/IP devices.
Device name Remarks
NX-EIP201 EtherNet/IP port in NX-series EtherNet/IP Unit
CJ1W-EIP21 (NJ) CJ1W-EIP21 mounted to NJ-series Controller
CJ1W-EIP21 CJ1W-EIP21 mounted to CJ1 CPU Unit
CJ1W-EIP21 (CJ2) CJ1W-EIP21 mounted to CJ2 CPU Unit
CJ2B-EIP21 Built-in EtherNet/IP port in CJ2H CPU Unit
CJ2M-EIP21 Built-in EtherNet/IP port in CJ2M CPU Unit
CS1W-EIP21 CS1W-EIP21 mounted to CS1 CPU Unit
NX701 Built-in EtherNet/IP port on NX-series CPU Unit
NX502-££££
NX102-££££
NX1P2
NJ501-££££
Built-in EtherNet/IP port on NJ-series CPU Unit
NJ301-££££
NJ101
Use the following procedure to create connections (i.e., tag data links) with the Wizard.
1 Set tags and tag sets for all the devices before starting the Wizard. Refer to 9-2-4 Creating
T
ags and T
ag Sets on page 9-19 for the setting procedure.
2 For tag data links between OMRON PLCs, a connection is created in the PLC (i.e., the origina-
tor device) that receives data as input data. First, select the registered device for which you
want to create a connection in the Network Configuration Window of the Network Configurator,
and then select
Device - Parameters - Wizard from the menu.
The following message box will be displayed before the Wizard starts.
Click the Yes Button to delete the connections that are set with OMRON PLCs before starting
the Wizard.
3 Create the connection following the instructions that are given by the Wizard after the Wizard
starts. (See the following figure.)
9 Tag Data Link Functions
9-43
NX-series EtherNet/IP Unit User's Manual (W627)
9-2 Setting Tag Data Links
9
9-2-6 Creating Connections Using the Wizard
