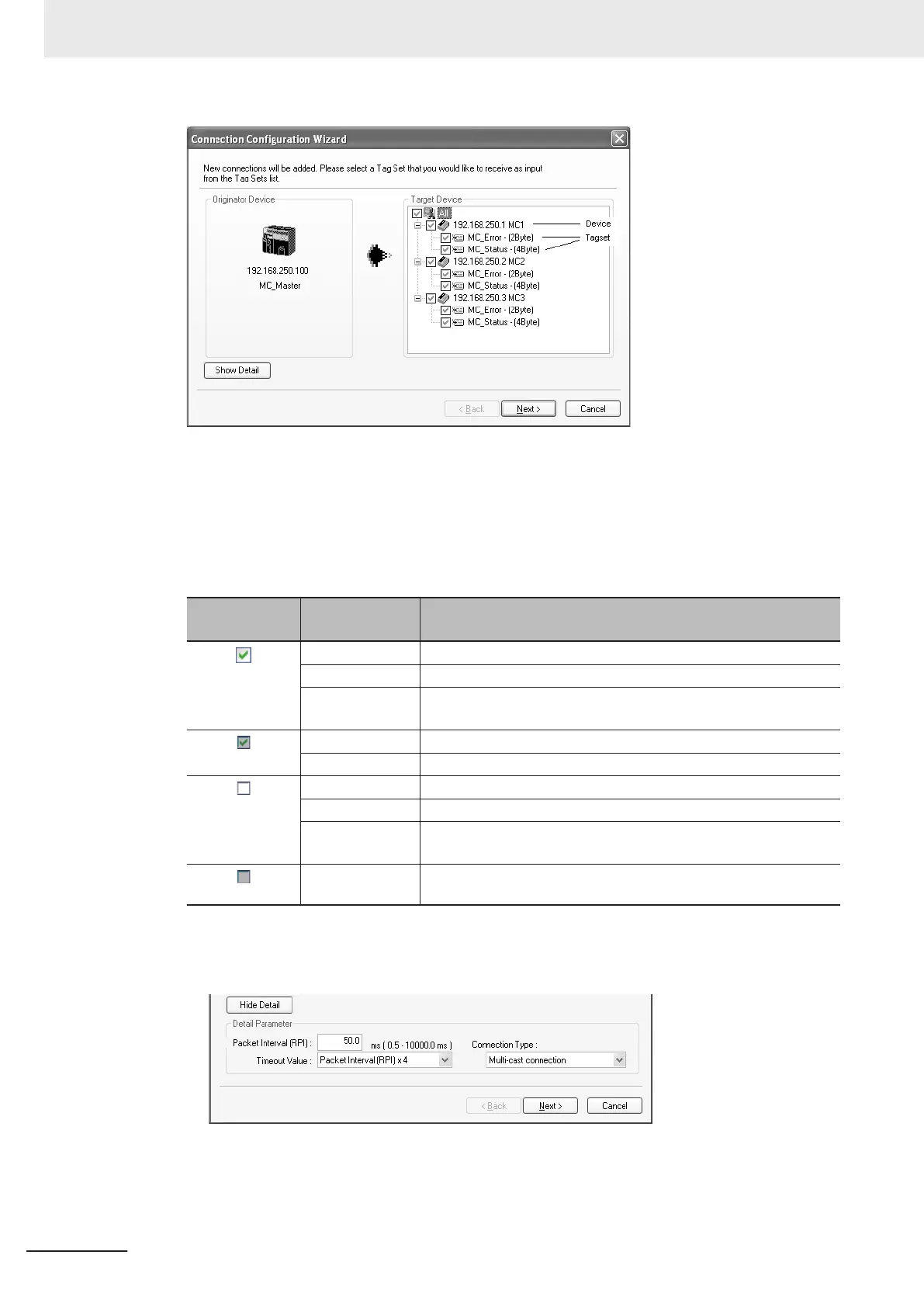

4 A list of tag sets is displayed on the right side of the Wizard with target devices that support
receiving input data.
Select the tag sets that you want to receive at the originator device.
The following table describes the meanings of the icons and check marks displayed in the tag
set list.
Icon
Display posi-
tion
Status
All All output tag sets for all devices are selected.
Device All output tag sets for the applicable device are selected.
Tag set The applicable output tag sets are selected. These are the tag
sets that will be set in the connection.
All All or some output tag sets for some devices are selected.
Device Some output tag sets for applicable devices are selected.
All All output tag sets for all devices are not selected.
Device All output tag sets for applicable devices are not selected.
Tag set The applicable output tag sets are not selected. The connections
for this tag set will be deleted.
Device No applicable tag sets.
Note Tag sets used in connections that are already set are not displayed.
The following display will appear when you click the Show Detail Button.
The preset values for detailed parameters will be displayed. Change the values as required.
The connection name cannot be set. They are automatically created using the following
rule.
9 Tag Data Link Functions
9-44
NX-series EtherNet/IP Unit User's Manual (W627)
