• Transferring connection settings to the Controller from the computer
Select Synchronization
from the Controller
Menu.
Select Transfer - To Controller
from the Controller Menu.
Select EtherNet/IP Connection
Settings from the Tools Menu to
display the device list.
Right-click the device and select
Edit from the menu.
Synchronization Window
Transfer to Controller Dialog
Box
EtherNet/IP Connection
Settings Tab Page
Precautions for Correct Use
To transfer only the connection settings, execute Transfer from the EtherNet/IP Connection Set-
ting Tab Page.
Even if you clear the
Do not transfer the connection setting Check Box, the connection set-
tings are not transferred from the Synchronization Window, the Transfer to the Controller Dia-
log Box, or the Transfer from the Controller Dialog Box as long as the data in the computer is
synchronized with the data in the Controller.

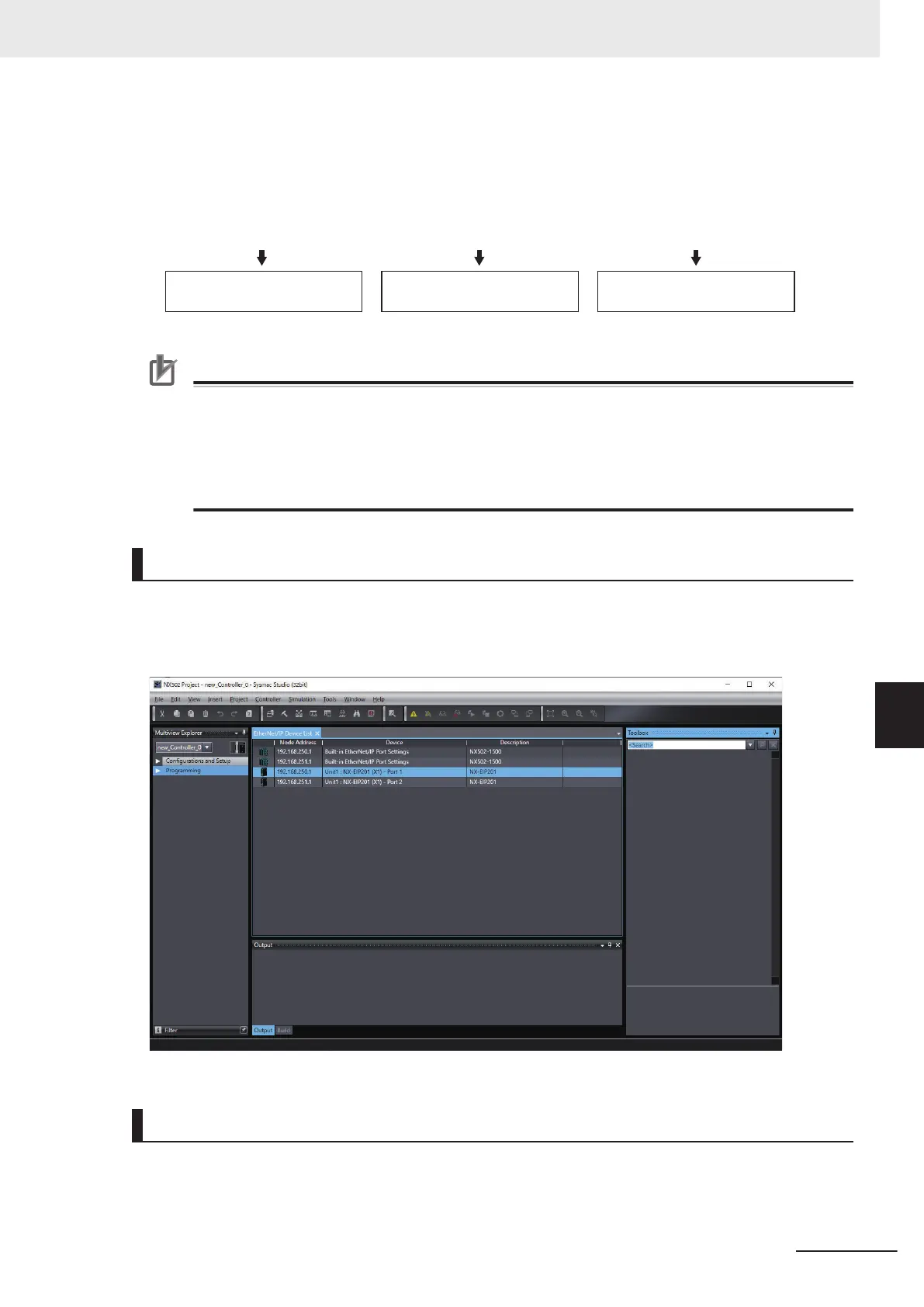

EtherNet/IP Device List Tab Page
The list indicates the devices to which EtherNet/IP connections can be set.
For information on how to access this tab page, refer to Registering the Tag and T
ag Set on page
A-14.
EtherNet/IP Connection Settings (Tag Set Display)
Register tag sets required to create connections.
Each tag set represents the data that is sent and received through a connection. You can register up
to eight tags in one tag set.
Appendices
A-9
NX-series EtherNet/IP Unit User's Manual (W627)
A-3 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-3-3 EtherNet/IP Connection Settings
