The name and size of the tag must be the same as those of the network variable
*1
. Set whether to
include the Controller status information in tags for the tag sets. You can also set the data output oper-
ation at a fatal error occurrence for output tags.
Refer to
Registering the Tag and Tag Set on page A-14 for information on how to register tags and
tag sets.
*1. A variable with its Network Publish attribute set to
Output or Input in the Global Variable Table is called a
network variable.

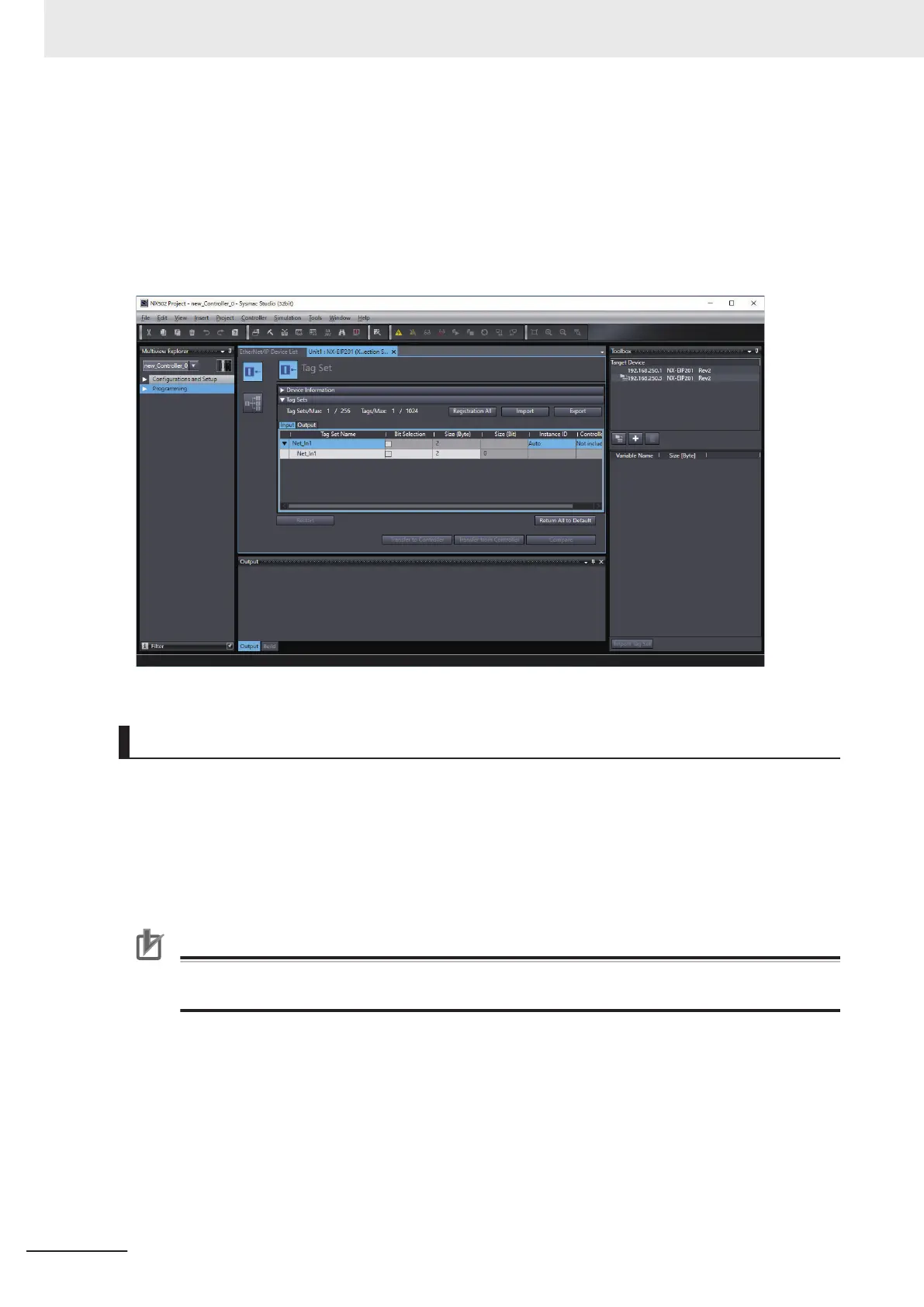

EtherNet/IP Connection Settings (Connection Display)
Specify the target devices and set their connections.
For each connection, set the following information: Connection Name, Connection I/O T
ype, I/O, target
device tag set (target variable), originator device tag set (originator variable), Packet Interval (RPI),
and T
imeout Value.
Refer to Setting Connections for the Originator Device on page A-17 for information on how to make
connection settings.
Precautions for Correct Use
If you changed the IP address, model, or revision of the target device after making the connec-
tion settings, change the connection settings entirely
.
Appendices
A-10
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
