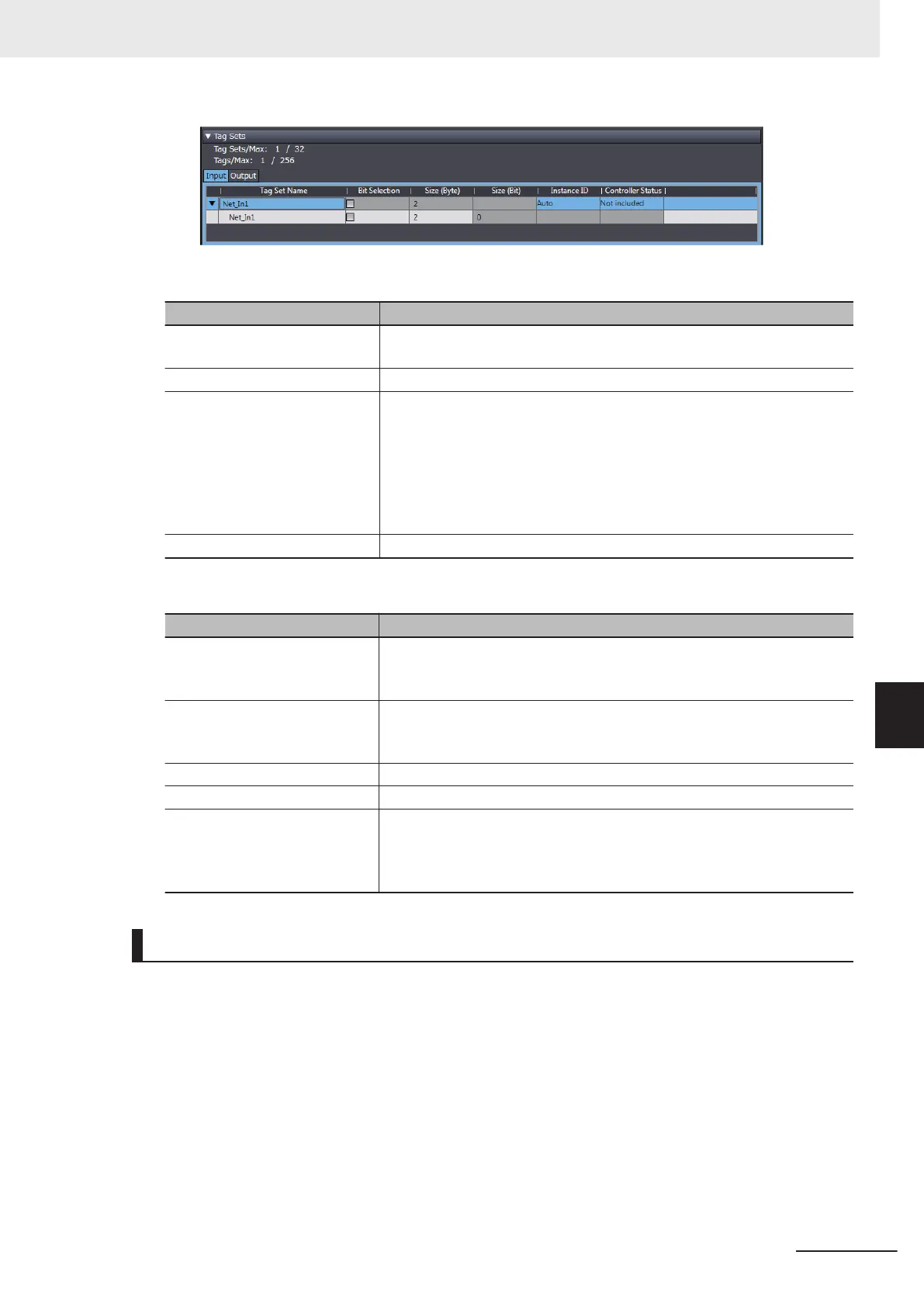

• Setting for Tag Sets
Name Item
Tag Set Name Enter the tag set name.
Y
ou can change the names as required.
Size (Byte) Gives the total size of the tag in bytes.
Instance ID Gives the instance ID.
• Auto
• IN_{min}...IN_{max}
{min} represents the minimum number of Produced Assembly identifica-
tion numbers recorded in the EDS files for the relevant devices.
{max} represents the maximum number of Produced Assembly identifica-
tion numbers recorded in the EDS files for the relevant devices.
Controller Status Specify whether to include the Controller status in the tag set.
• Setting for Tags
Name Item
Tag Name Enter the tag name.
Specify the tag name that matches one of the registered network variable
names in the Controller.
Bit Selection Specify whether to set the tag data size in bits.
Selected: Set the size in bits.
Not selected: Set the size in bytes.
Size (Byte) Gives the size of the tag in bytes.
Size (Bit) Gives the size of the tag in bits.
Output at Fatal Error Specify whether to clear the output data or continue to send it when a ma-
jor fault level Controller error occurs in the Controller
.
• Retained
• Cleared
Setting Connections for the Originator Device
After the tag set registration, set the connection settings for transferring data using the EtherNet/IP
connections.
Make the connection settings in the originator device (i.e., Controller 1 in this example) only.
Register the tag and tag set for Controller 2 (T
arget device) before setting the connection settings as
described in this example.
Refer to Registering the Tag and Tag Set for the Target Device on page A-25 for the operations for
registering tags and tag sets.
Appendices
A-17
NX-series EtherNet/IP Unit User's Manual (W627)
A-3 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-3-4 Making the EtherNet/IP Connection Settings with the Sysmac Studio
