Additional Information
You can register up to 8 tags in a tag set.
Set as shown below to register multiple tags.
Examples:
Tag set name
▼ Network_Input_Value .... (Tag set name)
Net_In1 .... (Tag name)
Net_In2 .... (Tag name)
6 Register all tags and tag sets at the same time.

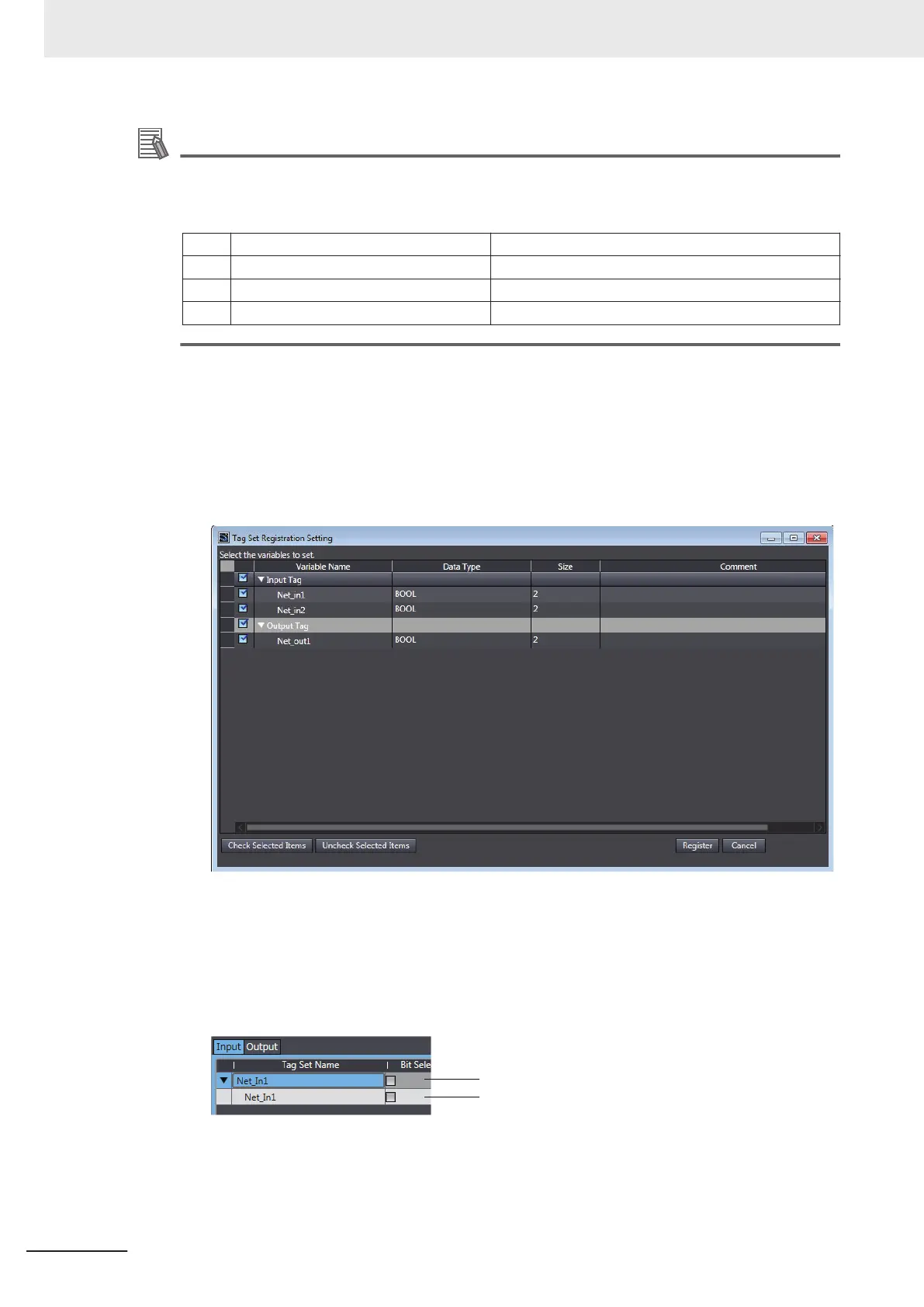

1) Right-click anywhere on the Input Tab Page of the EtherNet/IP Connection Settings Tab
Page and select Register All Tag Sets
or click the Registration All Button to display the
Tag Set Registration Setting Dialog Box.
This dialog box lists the variables that are registered in the Global Variable Table and
also have the Network Publish attribute set to Input or Output.
2) Select the variable to register as a tag, and then click the Register Button.
3) The automatically registered tag is added to the list in the EtherNet/IP Connection Setting
Tab Page.
With automatic registration, the tag is registered under a tag set having the same name
as the tag, i.e., a single tag is registered in a single tag set.
Tag set name
T
ag name
7 Set the following settings for the registered tag and tag set.
Appendices
A-16
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
