3 Select the EDS file to add, and then click the Open Button.
The EDS file is added.
4 The EtherNet/IP device with the EDS file installed is added to the EDS Library.

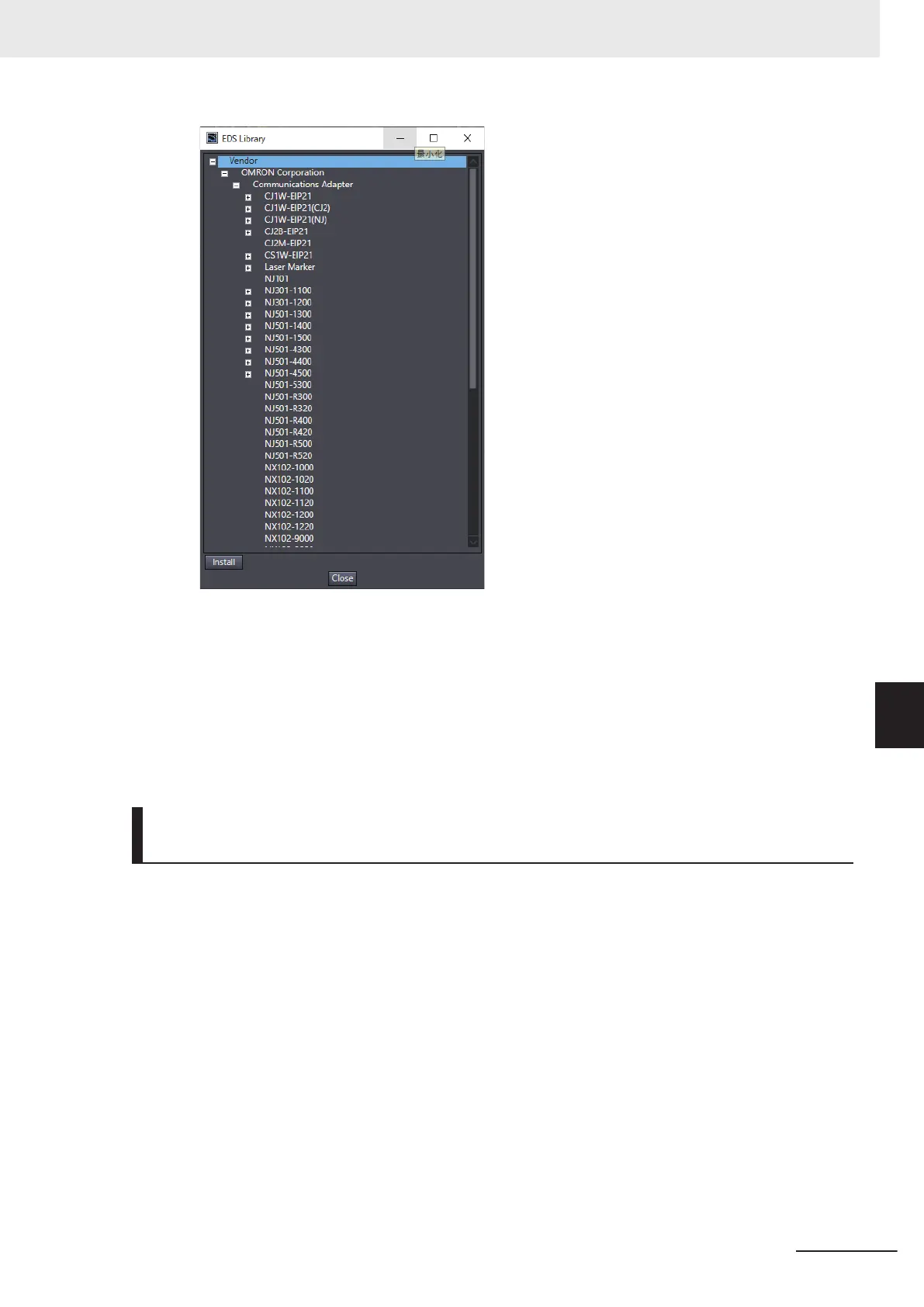

Devices listed in the EDS Library are used as a candidate device list when adding devices to
the T
arget Device List in the T
oolbox of the EtherNet/IP Connection Setting Tab Page.
Changing the Target Device Settings after Making Connection Set-
tings
If you change the IP address, model, or revision of the target device after making the connection set-
tings, you must also change the target device settings that are included in the connection settings.
Y
ou can change the target device settings entirely
.
l
Changing the IP Addresses for All Target Devices
1 Right-click one of the connection lines and select Change Node Address from the menu.
