Omron NX Series User Manual

EtherNet/IP connection settings for Controller 1
Connection (2)
EtherNet/IP connection settings for Controller 2
In this example, the PPS for Connection (1) is 50 pps, the PPS for Connection (2) is 10 pps, and
the PPS for Connection (3) is 210 pps. Therefore, bandwidth used (PPS) for each EtherNet/IP de-
vice is as given below.
192.168.250.1: 270 pps = 50 pps (for Connection (1)) + 10 pps (for Connection (2)) + 210 pps (for
Connection (3))
192.168.250.2: 60 pps = 50 pps (for Connection (1)) + 10 pps (for Connection (2))
192.168.250.3: 210 pps = 210 pps (for Connection (3))
l
Adjusting Method
If the calculation result value exceeds the values in the specifications of the devices used in the
EtherNet/IP connections, re-evaluate the overall network configuration and correct it by taking
steps such as selecting a different Ethernet switch or splitting the network.
If the RPI is made longer
, the PPS for the EtherNet/IP connections will decrease.

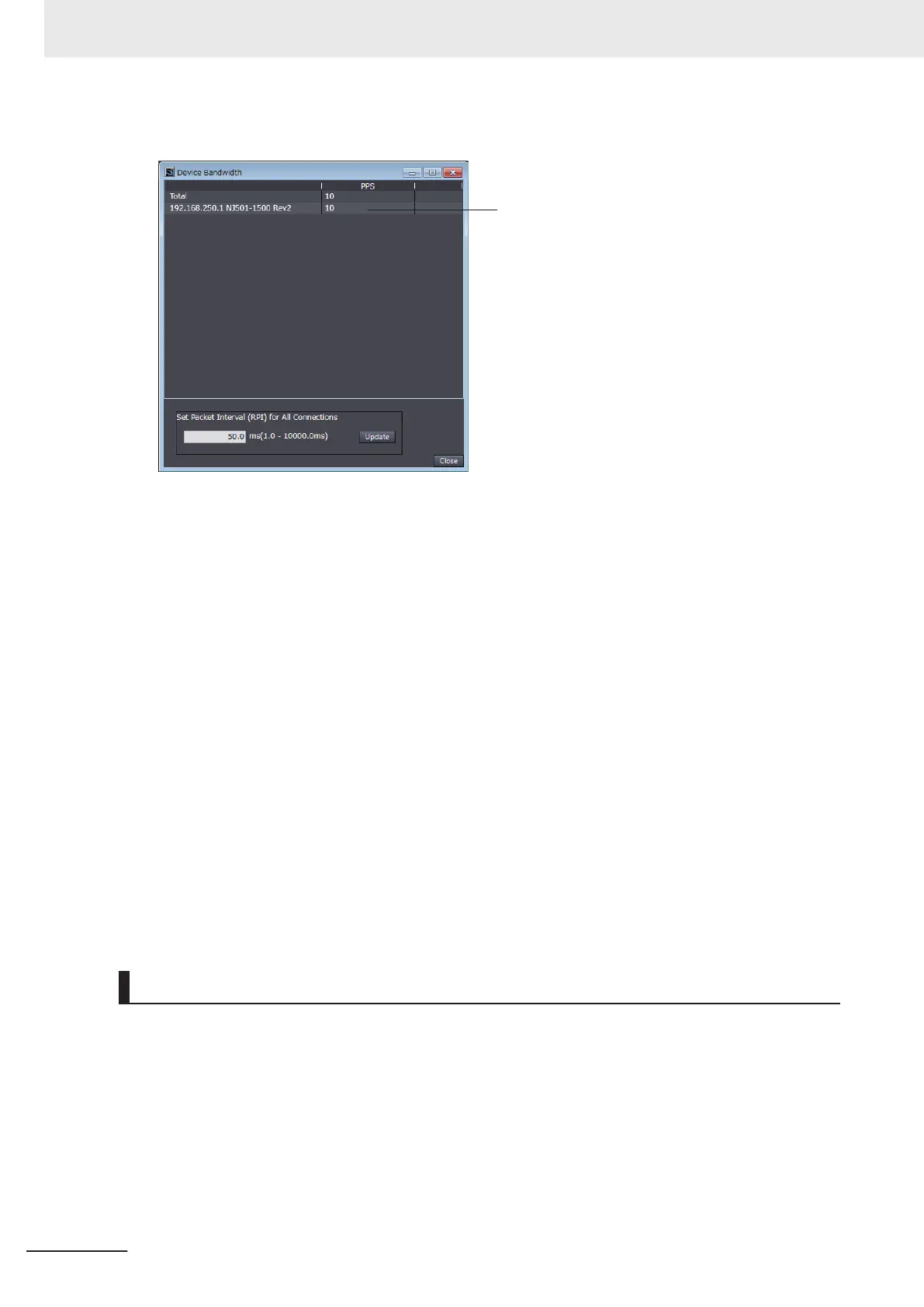

You can change the RPI values in the connection settings for all the target devices by specifying a
value in Set Packet Interval (RPI) for All Connections in this dialog box.
Refer to 12-2-2 Tag Data Link Bandwidth Usage and RPI on page 12-9 for the relationship between
the PPS for the device and the RPI.
Transferring the Connection Settings Data
You can synchronize and transfer EtherNet/IP connection settings along with the program data. You
can also transfer all the EtherNet/IP connection settings along with the program data.
Appendices
A-28
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
