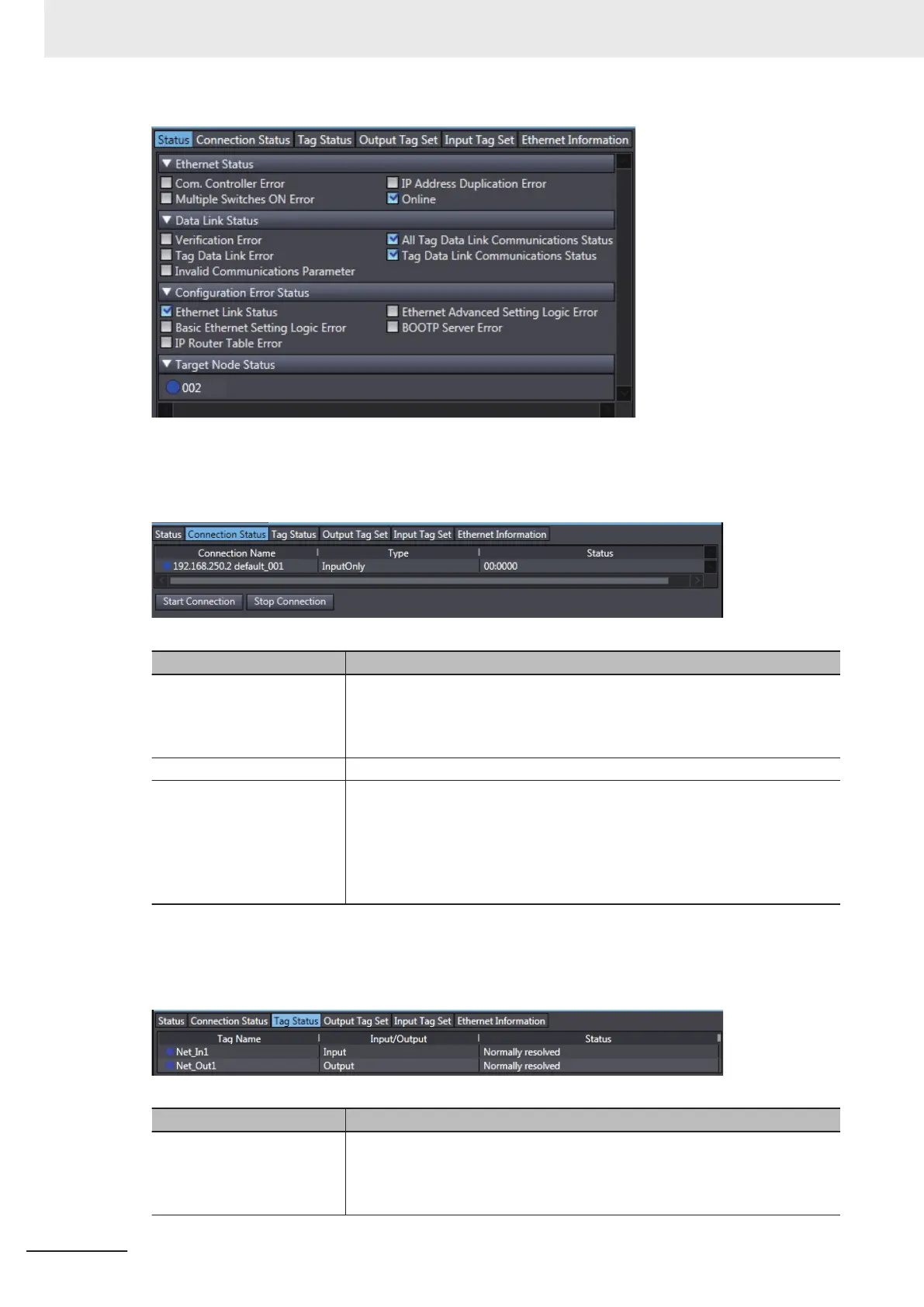

• Connection Status Tab Page
Current status of each connection is given.
Name Description
Connection Name Gives the current status of each connection with the following text colors.
Blue: Normal
Red: There is at least one connection that has not been established.
Gray: There are no connections or the connection operation is stopped.
Type Gives the connection type.
Status Gives the current status on each connection with codes.
• Normal operation: 00:0000
• Abnormal operation: Gives an error code.
This information can be used to identify the cause of EtherNet/IP connec-
tion errors. Refer to 14-6-2 Connection Status Codes and Troubleshooting
on page 14-
55 for details on the connection status.
• Tag Status Tab Page
This tab page gives if the tag settings for each tag for EtherNet/IP connections are set so that data
can be exchanged with target devices.
Name Description
Tag Name The current status of each tag is indicated by its color.
Red: Tag name resolution error
Blue: T
ag name resolution normal
Gray: Not yet transferred (no information in device).
Appendices
A-34
NX-series EtherNet/IP Unit User's Manual (W627)

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
